2006Chevrolet Silverado

The standalone name arrived for 1999; a Silverado Classic owner manual documents the outgoing truck in the 2007 transition year.

First Silverado 1500 design · Original nameplate and Classic overlap

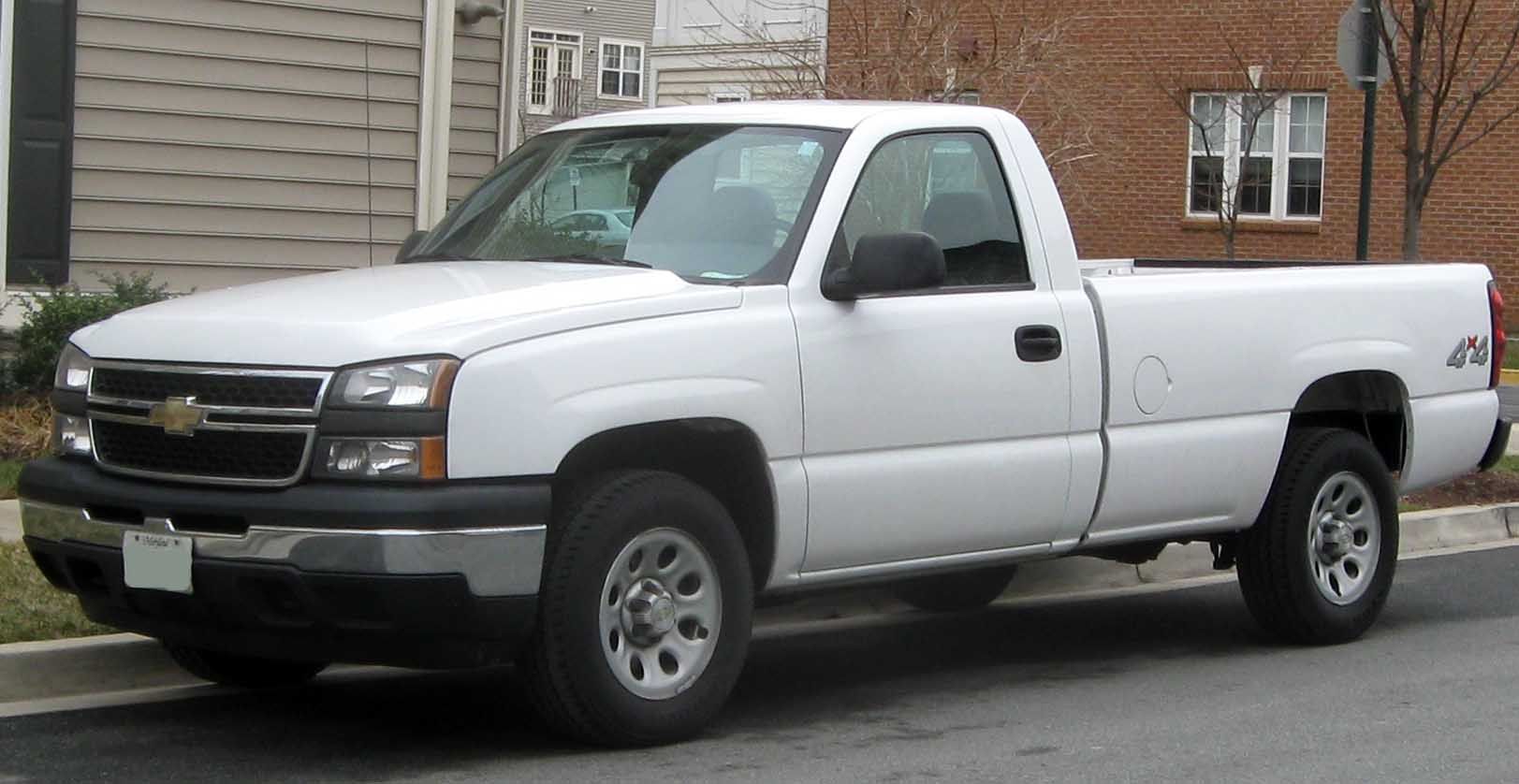

White Silverado Regular Cab with 2006-style front, representative photograph; configuration identity not established
Representative generation photograph ·

Photo: “2006 Chevrolet Silverado 1500.jpg” by IFCAR / Wikimedia Commons — Public domain. Responsive display crop; representative Regular Cab image, not proof of exact year, trim, box, engine, gearbox or drive.

The 2006 model year

Overview

The 2006 Silverado light-duty range received revised front styling and added a 5-foot-8-inch Extended Cab short box, distinct from the standard and long Extended Cab boxes and the Crew Cab short box. The selected offerings below follow the dated ordinary 1500 and separate SS order appendices. Other combinations and optional packages remain under research; this is not a complete annual roster.

Specifications

Engines
  • Vortec 4300 V6 (LU3)
  • Vortec 4800 V8 (LR4)
  • Vortec 5300 V8 (LM7)
  • Vortec 5300 V8 (L33)
  • Vortec 6000 V8 (LQ9)
Transmissions
MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive
Body styles
Crew Cab Fleetside short box (E63), Extended Cab Fleetside long box (E63), Extended Cab Fleetside short box (5 ft 8 in) (E63), Extended Cab Fleetside standard box (E63), Regular Cab Fleetside long box (E63), Regular Cab Fleetside standard box (E63)

Year over year

What changed

  • The new Extended Cab short box has distinct CC15553/CK15553 identities; it is not the Crew Cab CC15543/CK15543 short box.
  • The light-duty front appearance changed; separate Heavy Duty and diesel updates are not applied to these 1500 offerings.
  • The SS two-wheel-drive offering began during interim 2005; the 2006 SS appendix documents a separate dated selection.

Worth knowing

Notable

  • Ordinary ordering is dated July 29, 2005; SS ordering June 17, 2005; separate HD material July 1, 2005 is not merged.
  • L33 requires CK15753 and the Light Duty Power Package (PDU), excluding the Z83 Solid Smooth Ride suspension package. Delayed 2LS ordering, regional packages and optional engines retain their source restrictions.
  • The manual permits E85 only for VIN Z/L59; none of these documented standard offerings is L59. Other engines use unleaded gasoline with engine-specific octane requirements. VIN N/LQ9 specifies 91+ premium and also permits 87+ regular with possible reduced acceleration/light knock.
  • Selected ownership topics do not certify every fitted-equipment duty. Verify actual engine, transmission and hardware using the full own-year manual.

Maintenance & service parts

Keep your 2006 Silverado on the road

Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.

Service desk

What this car needs & when

Use this as a service-planning checklist for 2006 Chevrolet Silverado. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.

Service topics
11
Scheduled topics
11
Applicability stated
11
Exact references
2

Before ordering Identify your engine, options and build date. Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.

  • Gasoline engine oil and filterView intervals, applicability and sources

    Gasoline engine oil and filter

    Exact reference available

    Follow the gasoline Oil Life System: change oil and filter as soon as possible within 600 miles of the message, and at least once a year even without a message; reset after every change. If accidentally reset, change within 3,000 miles since the previous change, not a routine 3,000-mile interval. Use Maintenance I when the message occurs within 10 months of purchase or within 10 months after Maintenance II. Use Maintenance II after prior Maintenance I; always use II at 10 months or more since service or if no message appears for one year. Diesel requires its separate supplement. Fuel permission and octane are separate: VIN Z/L59 alone permits E85; none of these documented standard offerings is L59. VIN N/LQ9 specifies 91+ premium and also permits 87+ regular with possible reduced acceleration/light knock. Verify actual VIN and engine before using an engine-specific reference.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 12 months · Annual maximum, with earlier monitor-triggered service within 600 miles; not a fixed routine mileage.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-22–23, 6-4–5 / PDF 424–425, 540–541 · checked

    Period reference — LU3 / VIN X V6 only

    The own-year GM VIN card identifies X/LU3; the owner table identifies VIN X and separately lists the V6 filter. Verify actual vehicle and installed part. This is a period reference, not present stock or supersession.

    Applies to: 2006 · 4300 V6 · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Engine table 5-134/PDF 536; replacement parts 6-17/PDF 553; GM VIN card PDF 2 · checked

    Verified ordering references

    Period reference — listed LR4/V, LM7/T and LQ9/N V8 identities only

    The own-year GM VIN card supplies the RPO/VIN bridge; the manual engine table lists V, T and N and its replacement table lists the V8 family reference. Verify actual VIN and installed part. The omitted B/L33 identity is excluded from this period branch.

    Applies to: 2006 · 4800 V8, 5300 V8, 6000 V8 · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-134/PDF 536 and 6-17/PDF 553; GM VIN card PDF 2 · checked

    Verified ordering references

    Current application — L33 / VIN B only

    Separate dated current catalog application explicitly covers B/L33 for 2005–2006 USA/CAN. The period owner engine table omits B, so its family PF46 row is not assigned to L33.

    Applies to: 2006 · 5300 V8 · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Source: ACDelco V30E10R2 current catalog, observed October 24, 2026; listed 2005–2006 application · V30E10R2 retained first card: 2005 Silverado 1500 LT 5.3 selection; application 2005–2006 USA/CAN, B/L33 · checked

    Verified ordering references

    Current application — WT 4.3L LU3 / VIN X

    Selected 2006 Chevrolet Silverado 1500 WT 4.3L V6 VIN X; card explicitly names LU3. Observed October 24, 2026: ACDelco PF47E / GM 19210284 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a claim that a period number was superseded or that any seller has stock.

    Applies to: 2006 · Vortec 4300 V6 (LU3) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Chevrolet Silverado 1500 WT 4.3L V6 VIN X; card explicitly names LU3.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Chevrolet Silverado 1500 WT 4.3L V6 VIN X; card explicitly names LU3. Card years 2004–2007, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — WT 4.8L LR4 / VIN V

    Selected 2006 Chevrolet Silverado 1500 WT 4.8L V8 VIN V. LR4 identity is separately joined through the own-year GM VIN card, not printed on this part card. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a claim that a period number was superseded or that any seller has stock.

    Applies to: 2006 · Vortec 4800 V8 (LR4) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Chevrolet Silverado 1500 WT 4.8L V8 VIN V. LR4 identity is separately joined through the own-year GM VIN card, not printed on this part card.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Chevrolet Silverado 1500 WT 4.8L V8 VIN V. LR4 identity is separately joined through the own-year GM VIN card, not printed on this part card. Card years 1999–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — LT 5.3L LM7 / VIN T

    Selected 2006 Chevrolet Silverado 1500 LT 5.3L VIN B,T; the card separately names T/LM7. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a claim that a period number was superseded or that any seller has stock.

    Applies to: 2006 · Vortec 5300 V8 (LM7) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Chevrolet Silverado 1500 LT 5.3L VIN B,T; the card separately names T/LM7.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Chevrolet Silverado 1500 LT 5.3L VIN B,T; the card separately names T/LM7. Card years 2005–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — SS 6.0L LQ9 / VIN N

    Selected 2006 Chevrolet Silverado 1500 SS 6.0L V8 VIN N; the card explicitly names LQ9. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a claim that a period number was superseded or that any seller has stock.

    Applies to: 2006 · Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Chevrolet Silverado 1500 SS 6.0L V8 VIN N; the card explicitly names LQ9.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Chevrolet Silverado 1500 SS 6.0L V8 VIN N; the card explicitly names LQ9. Card years 2004–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — LS 4.3L LU3 / VIN X

    Selected 2006 Silverado 1500 LS 4.3L V6 VIN X; product card explicitly names LU3. Observed October 24, 2026: ACDelco PF47E / GM 19210284 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a period-number supersession or seller-stock claim.

    Applies to: 2006 · Vortec 4300 V6 (LU3) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Silverado 1500 LS 4.3L V6 VIN X; product card explicitly names LU3.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Silverado 1500 LS 4.3L V6 VIN X; product card explicitly names LU3. Card years 2004–2007, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — LS 4.8L LR4 / VIN V

    Selected 2006 Silverado 1500 LS 4.8L V8 VIN V; LR4 is separately joined through the own-year GM VIN card. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a period-number supersession or seller-stock claim.

    Applies to: 2006 · Vortec 4800 V8 (LR4) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Silverado 1500 LS 4.8L V8 VIN V; LR4 is separately joined through the own-year GM VIN card.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Silverado 1500 LS 4.8L V8 VIN V; LR4 is separately joined through the own-year GM VIN card. Card years 1999–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — LS 5.3L LM7 / VIN T

    Selected 2006 Silverado 1500 LS 5.3L VIN B,T; product card explicitly identifies T/LM7. No LS L33 factory offering is inferred. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a period-number supersession or seller-stock claim.

    Applies to: 2006 · Vortec 5300 V8 (LM7) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Silverado 1500 LS 5.3L VIN B,T; product card explicitly identifies T/LM7. No LS L33 factory offering is inferred.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Silverado 1500 LS 5.3L VIN B,T; product card explicitly identifies T/LM7. No LS L33 factory offering is inferred. Card years 2005–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — WT 5.3L LM7 / VIN T

    Selected 2006 Silverado 1500 WT 5.3L VIN B,T; product card explicitly identifies T/LM7. No WT L33 factory offering is inferred. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a period-number supersession or seller-stock claim.

    Applies to: 2006 · Vortec 5300 V8 (LM7) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Silverado 1500 WT 5.3L VIN B,T; product card explicitly identifies T/LM7. No WT L33 factory offering is inferred.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Silverado 1500 WT 5.3L VIN B,T; product card explicitly identifies T/LM7. No WT L33 factory offering is inferred. Card years 2005–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

    Current application — LT 4.8L LR4 / VIN V

    Selected 2006 Silverado 1500 LT 4.8L V8 VIN V; LR4 is separately joined through the own-year GM VIN card. Observed October 24, 2026: ACDelco PF46E / GM 19210283 as listed in this catalog capture, USA/CAN, single use. Verify the actual engine, VIN and installed filter before ordering. This is a separately observed current catalog application, not a period-number supersession or seller-stock claim.

    Applies to: 2006 · Vortec 4800 V8 (LR4) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Selected 2006 Silverado 1500 LT 4.8L V8 VIN V; LR4 is separately joined through the own-year GM VIN card.

    Source: ACDelco public catalog V30E10R2, selected 2006 Silverado 1500 applications; observed October 24, 2026 · V30E10R2 Engine Oil Filter result; Selected 2006 Silverado 1500 LT 4.8L V8 VIN V; LR4 is separately joined through the own-year GM VIN card. Card years 1999–2006, USA/CAN, single use, one per vehicle · checked

    Verified ordering references

  • Engine-air filter and optional restriction indicatorView intervals, applicability and sources

    Engine-air filter and optional restriction indicator

    Exact reference available

    Identify actual indicator and housing. These conditional alternatives do not establish fitted hardware; any catalog reference shown applies only to its stated application; the separately dated current application is limited to the documented LM7/L33 LT selection.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-25, 6-5, 6-7, 6-10 / PDF 427, 541, 543, 546 · checked

    If a restriction indicator is fitted

    Inspect at each oil change; replace and reset when black OR in the red/orange change zone. Dusty/dirty operation also requires inspection each oil change. Do not assign the without-indicator fixed service-point branch to this hardware.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: Inspect at every oil change; replace/reset when black OR in the red/orange change zone, with dusty/dirty inspections at each oil change.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-25/PDF 427; footnote(p), 6-10/PDF 546 · checked

    If no restriction indicator is fitted

    Inspect at Maintenance II and each oil change in dusty/dirty operation. Replace at the first maintenance service after the listed 50,000-, 100,000- and 150,000-mile points; the air-cleaner section specifies the first oil change after each 50,000-mile point. Do not turn this into unconditional routine replacement for all hardware.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 50,000 mi · First maintenance service after the listed 50,000-, 100,000- and 150,000-mile points; the air-cleaner section specifies the first oil change after each 50,000-mile point. Inspect at Maintenance II and each dusty/dirty oil change.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-25/PDF 427; 6-5/PDF 541; 6-7/PDF 543; 6-10/PDF 546 · checked

    Current catalog part application — LM7/L33 LT only

    ACDelco currently lists A3181C / GM 22845992 for the selected 2005–2006 Silverado 1500 LT 5.3L VIN B,T application. The result includes both K47 high-capacity and Except-K47 application lines; this is not proof of the truck’s fitted housing. Indicator equipment and air-cleaner capacity are separate. Verify actual engine and housing before ordering. This part reference does not introduce another service interval, prove supersession of A1519C/A1518C, or establish stock.

    Applies to: 2006 · 5300 V8 · M30 4-speed automatic with overdrive · United States · Current catalog application for the documented LT LM7/VIN T and L33/VIN B selection only. Verify actual engine and housing; no WT/LS/SS, unknown engine, diesel or adjacent-year inheritance.

    Source: ACDelco manufacturer catalog V30E10R2, current application observed October 24, 2026 · V30E10R2 selected 2006 Chevrolet Silverado 1500 LT 5.3L VIN B,T; Engine Air Filter A3181C, application years 2005–2006; product-card application and buyers guide · checked

    Verified ordering references

  • Routine owner checks and Maintenance I/II inspectionsView intervals, applicability and sources

    Routine owner checks and Maintenance I/II inspections

    Sourced interval available

    At each fuel fill check oil, coolant and washer levels using the full procedures. Monthly check pressures including spare, secure spare storage and tire wear; high-mileage highway use may need rotation before the oil message. I/II inspections include leaks and brakes; II adds steering/suspension, cooling, wipers, restraints, body lubrication and applicable fluid checks. Separately from the 150,000-mile/five-year cooling service, the manual recommends system/cap pressure testing and exterior radiator/condenser cleaning at least annually. At least each spring flush corrosion/debris from the underbody. The first 100/1,000/6,000-mile wheel-nut instruction is explicitly dual-wheel, not assigned to these single-wheel records. Use the full manual; inspections are not automatic component replacement.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: At each fuel fill, monthly, at Maintenance I/II, annually for the separate cooling recommendation, and at least each spring for underbody flushing; follow each named check, not one uniform interval.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-5–6, 6-9–13 / PDF 541–542, 545–549 · checked

    Automatic-transmission annual safety checks

    Follow the original starter, automatic shift-lock, ignition/transmission-lock and parking-brake/Park procedures at least annually. Sudden vehicle movement can injure people or damage property; use the complete original warnings and qualified-service handoff, not abbreviated steps. These automatic procedures are not assigned to MG5.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 12 months · At least annually; actual automatic-transmission safety checks only, using the full original warnings and procedures.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-12–13 / PDF 548–549 · checked

    Manual-transmission owner-check boundary

    Common fluid, tire and underbody checks apply, but the displayed automatic shift-lock/Park procedures do not establish an MG5 procedure. Follow actual fitted-equipment instructions and obtain qualified service for safety checks.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: Common fuel-fill, monthly and spring checks only as described; follow actual manual-transmission equipment procedures rather than automatic shift-lock/Park tests.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-11–13 / PDF 547–549 · checked

  • Chassis lubricationView intervals, applicability and sources

    Chassis lubrication

    Sourced interval available

    Lubricate specified chassis components at Maintenance I and II. Severe-commercial operating conditions require regular 3,000-mile lubrication; this is not a universal interval. Ball joints must be at least 10°F component temperature before lubrication, not an ambient-temperature shortcut. The period specification is NLGI No. 2 Category LB or GC-LB; no current product is assigned.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: At Maintenance I and II; severe-commercial use separately requires regular 3,000-mile lubrication. Preserve the ball-joint component-temperature condition.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-5, 6-9(#), 6-15 / PDF 541, 545, 551 · checked

  • Tire rotation and axle-condition checksView intervals, applicability and sources

    Tire rotation and axle-condition checks

    Sourced interval available

    Rotate at 5,000–8,000 miles and sooner for unusual wear, using the actual installed tire/wheel pattern; also check wear at I/II and monthly. Rear/front axle and transfer-case levels do not need routine checking absent suspected leakage or unusual noise. Have fluid loss inspected/repaired. Follow the full 1500-specific rear-axle and cold/warm front-axle procedures; do not borrow HD fill levels or infer all systems fill to the plug.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: Rotate at 5,000–8,000 miles and sooner for unusual wear; inspect wear at I/II and monthly. Axle/transfer-case level checks are leak/noise-triggered, not routine.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-56–60, 5-82–84, 6-5, 6-11 / PDF 458–462, 484–486, 541, 547 · checked

  • Transmission service — follow the actual fitted typeView intervals, applicability and sources

    Transmission service — follow the actual fitted type

    Sourced interval available

    Automatic and MG5 manual branches are distinct; no actual GVWR, exact gearbox model or current product is inferred.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8, 6-10(h), 6-15 / PDF 544, 546, 551 · checked

    Non-Allison automatic transmission service

    At the first Maintenance I or II after 100,000 miles for normal service, or after 50,000-, 100,000- and 150,000-mile points for severe service, change automatic fluid/filter. Severe applies if actual GVWR exceeds 8,600 lb OR mainly any listed use: heavy city traffic regularly at an outside temperature of 90°F or higher, hilly/mountainous terrain, frequent trailer towing, taxi/police/delivery. Do not infer actual GVWR or require all uses. The own-year period fluid table specifies DEXRON-VI; no current SKU or exact gearbox model is assigned. Allison has separate conditions and is not inherited.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: First Maintenance I or II after 100,000 miles for normal service; after 50,000-, 100,000- and 150,000-mile points if GVWR exceeds 8,600 lb OR the vehicle is mainly driven in any listed severe use. Actual non-Allison automatic only.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8, 6-10(h), 6-15 / PDF 544, 546, 551 · checked

    MG5 five-speed manual transmission service

    Change five-speed manual transmission fluid at the first Maintenance I or II after 150,000 miles. The period table separately names Synchromesh for MG5; do not use the MW3 low-gear, six-speed Allison or automatic fluid rows. No current product or hardware substitution is assigned.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 150,000 mi · First Maintenance I or II after 150,000 miles; actual MG5 manual only.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8, 6-15 / PDF 544, 551 · checked

  • Four-wheel-drive transfer-case conditionsView intervals, applicability and sources

    Four-wheel-drive transfer-case conditions

    Sourced interval available

    Verify actual manual versus automatic transfer-case hardware. Level checks are leak/noise-triggered, not routine. The manual and automatic cases have different period fluid specifications; four-wheel drive alone does not establish automatic hardware.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-58–59, 6-8, 6-10(g), 6-15–16 / PDF 460–461, 544, 546, 551–552 · checked

    Only if an automatic transfer case is actually fitted

    Change automatic-transfer-case fluid at the first Maintenance I or II after 50,000-, 100,000- and 150,000-mile points. Check the hose at the case for kinks/proper installation. This is a conditional actual-hardware branch, not a universal 4WD schedule.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 50,000 mi · First Maintenance I or II after the 50,000-, 100,000- and 150,000-mile points, only if actual automatic transfer-case hardware is fitted.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8, 6-10(g) / PDF 544, 546 · checked

    If a manual transfer case is fitted

    The automatic-case 50,000-mile branch is not assigned to this hardware. Follow the full own-year manual case procedure and correct period specification; no invented fixed replacement interval.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: Leak/noise-triggered level checking and the actual manual-case procedure; the automatic-case 50,000-mile replacement branch is not assigned.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 5-58–59, 6-15 / PDF 460–461, 551 · checked

  • Fuel, exhaust and evaporative-system inspectionsView intervals, applicability and sources

    Fuel, exhaust and evaporative-system inspections

    Sourced interval available

    Inspect fuel/exhaust systems at the first I/II after each 25,000-mile service point. Inspect evaporative controls at the first I/II after 50,000-, 100,000- and 150,000-mile points, including routing/condition and purge valve only if fitted. These are inspections, not a borrowed fuel-filter replacement interval.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: Fuel/exhaust inspection at first I/II after each 25,000-mile point; evaporative inspection at first I/II after 50,000-, 100,000- and 150,000-mile points, with purge-valve checks only if fitted.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-7–8, 6-10(k) / PDF 543–544, 546 · checked

  • Spark-plug replacement and wire inspectionView intervals, applicability and sources

    Spark-plug replacement and wire inspection

    Sourced interval available

    At the first Maintenance I or II after 100,000 miles replace spark plugs and inspect spark-plug wires. Inspection does not mean unconditional wire replacement. No extra part number is assigned without engine-specific review.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 100,000 mi · First Maintenance I or II after 100,000 miles; replace plugs and inspect wires, not automatic wire replacement.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8 / PDF 544 · checked

  • Cooling-system serviceView intervals, applicability and sources

    Cooling-system service

    Sourced interval available

    Service at the first Maintenance I or II after 150,000 miles or every five years, whichever occurs first. Follow full drain/flush/refill and pressure-check instructions, including cleaning exterior radiator/condenser and testing cap/system. Hot pressurized coolant is hazardous; use the complete original procedure and qualified-service handoff, not shortened steps.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 150,000 mi / 60 months · First Maintenance I or II after 150,000 miles or every five years, whichever occurs first; the separate annual pressure-test/cleaning recommendation also applies.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8, 6-10(i) / PDF 544, 546 · checked

  • Engine accessory-drive belt inspectionView intervals, applicability and sources

    Engine accessory-drive belt inspection

    Sourced interval available

    Inspect at the first Maintenance I or II after 150,000 miles for wear/fraying/cracks/damage; replace only if necessary. This is not automatic belt replacement.

    Applies to: 2006 · Vortec 4300 V6 (LU3), Vortec 4800 V8 (LR4), Vortec 5300 V8 (LM7), Vortec 5300 V8 (L33), Vortec 6000 V8 (LQ9) · MG5 5-speed manual with overdrive, M30 4-speed automatic with overdrive, M32 4-speed heavy-duty automatic with overdrive · United States · Only the documented 2006 gasoline standard offerings. Actual fitted hardware must be verified; no diesel, HD, generic displacement or adjacent-year inheritance.

    Published interval: 150,000 mi · First Maintenance I or II after 150,000 miles; inspect and replace only if necessary.

    Source: Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing · Printed 6-8, 6-10(q) / PDF 544, 546 · checked

Collect

Bring this model year home

Find a scale model using the exact year, make, and model—not a generic generation search.

Sources

  1. GM 2006 Silverado kit: ordinary 1500 ordering July 29, 2005; separate SS ordering June 17, 2005
  2. Chevrolet 2006 Silverado owner manual, 06SILVERADO A First Printing
  3. GM 2006 VIN card, light-duty truck engine identification

Other First Silverado 1500 design years

All First Silverado 1500 design · Original nameplate and Classic overlap years →

Documented lineup

Find your exact 2006 Silverado

Start with a family, body style, or engine. Every card opens the facts and maintenance information for that factory version.

43factory configurations
Exact factory pairings documentedHow this lineup was verified

These source-backed records identify published body, engine, and transmission combinations. Exact pairings do not by themselves assert that every factory option or special edition is represented.

43versions shown
Browse 43 documented records — use the filters above to narrow the list
1500 1WT 2WD4 exact versions

Silverado 1WT 2WD CC15703

Body
Regular Cab Fleetside standard box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1WT 2WD CC15903

Body
Regular Cab Fleetside long box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1WT 2WD CC15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1WT 2WD CC15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 1WT 4WD4 exact versions

Silverado 1WT 4WD CK15703

Body
Regular Cab Fleetside standard box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1WT 4WD CK15903

Body
Regular Cab Fleetside long box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1WT 4WD CK15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 4800 V8 (LR4)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1WT 4WD CK15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 1LS 2WD4 exact versions

Silverado 1LS 2WD CC15703

Body
Regular Cab Fleetside standard box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1LS 2WD CC15903

Body
Regular Cab Fleetside long box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1LS 2WD CC15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LS 2WD CC15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 1LS 4WD4 exact versions

Silverado 1LS 4WD CK15703

Body
Regular Cab Fleetside standard box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1LS 4WD CK15903

Body
Regular Cab Fleetside long box (E63)
Engine
Vortec 4300 V6 (LU3)
Gearbox
MG5 5-speed manual with overdrive
Built
Regular production
Open exact version

Silverado 1LS 4WD CK15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 4800 V8 (LR4)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LS 4WD CK15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 2LS 2WD1 exact versions

Silverado 2LS 2WD CC15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 2LS 4WD1 exact versions

Silverado 2LS 4WD CK15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 1LT 2WD4 exact versions

Silverado 1LT 2WD CC15553

Body
Extended Cab Fleetside short box (5 ft 8 in) (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LT 2WD CC15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 4800 V8 (LR4)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LT 2WD CC15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LT 2WD CC15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 1LT 4WD4 exact versions

Silverado 1LT 4WD CK15553

Body
Extended Cab Fleetside short box (5 ft 8 in) (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LT 4WD CK15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 4800 V8 (LR4)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LT 4WD CK15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 1LT 4WD CK15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 2LT 2WD4 exact versions

Silverado 2LT 2WD CC15553

Body
Extended Cab Fleetside short box (5 ft 8 in) (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 2LT 2WD CC15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 2LT 2WD CC15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 2LT 2WD CC15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 2LT 4WD4 exact versions

Silverado 2LT 4WD CK15553

Body
Extended Cab Fleetside short box (5 ft 8 in) (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 2LT 4WD CK15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 5300 V8 (L33)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 2LT 4WD CK15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 2LT 4WD CK15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 3LT 2WD4 exact versions

Silverado 3LT 2WD CC15553

Body
Extended Cab Fleetside short box (5 ft 8 in) (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 3LT 2WD CC15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 3LT 2WD CC15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 3LT 2WD CC15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 3LT 4WD4 exact versions

Silverado 3LT 4WD CK15553

Body
Extended Cab Fleetside short box (5 ft 8 in) (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 3LT 4WD CK15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 5300 V8 (L33)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 3LT 4WD CK15953

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Silverado 3LT 4WD CK15543

Body
Crew Cab Fleetside short box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
1500 1SS 2WD1 exact versions

Silverado 1SS 2WD CC15753

Body
Extended Cab Fleetside standard box (E63)
Engine
Vortec 6000 V8 (LQ9)
Gearbox
M32 4-speed heavy-duty automatic with overdrive
Built
Regular production
Open exact version

Browse by tag

← All Chevrolet Silverado years
