2003Chevrolet Silverado

The standalone name arrived for 1999; a Silverado Classic owner manual documents the outgoing truck in the 2007 transition year.

First Silverado 1500 design · Original nameplate and Classic overlap

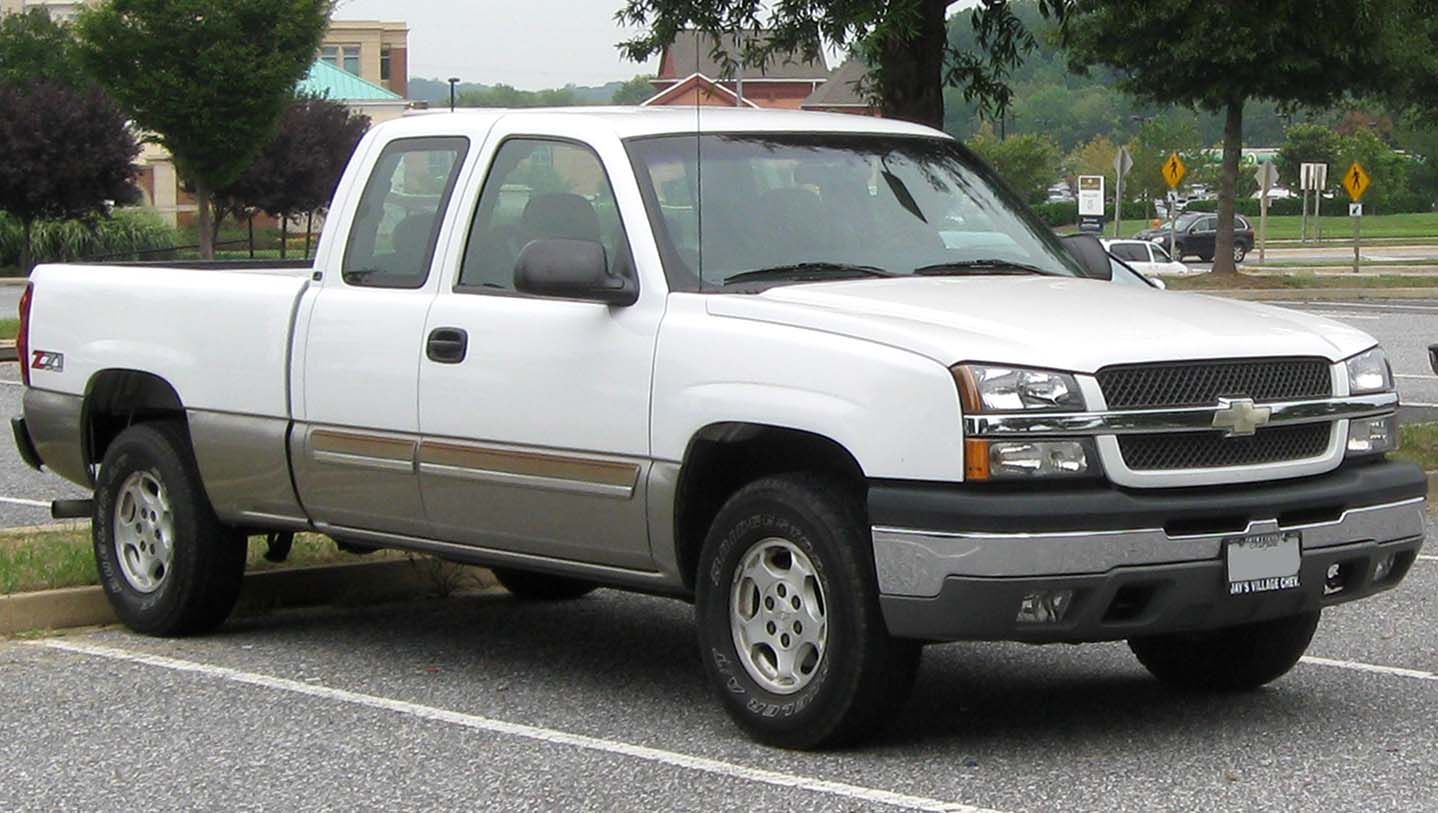

White 2003–2005 Chevrolet Silverado Extended Cab Fleetside, representative photograph with unidentified equipment
Representative generation photograph ·

Photo: “2003-2005 Chevrolet Silverado -- 09-03-2010.jpg” by IFCAR / Wikimedia Commons — Public domain. Responsive display crop; representative 2003–2005 Extended Cab Fleetside, not proof of exact year, box length, trim, engine, transmission or drive.

The 2003 model year

Overview

The 2003 Silverado refreshed the first-generation pickup’s face and cabin rather than replacing its entire cab-and-box family. Chevrolet described a revised hood, integrated grille and angular wheel openings, accompanied by a new instrument cluster and Driver Information Center. Its wider equipment offering included dual-zone climate control and revised entertainment systems. Equipment still depended on series and options: 1500, 1500HD and the heavier-duty models should not be treated as one interchangeable truck.

Specifications

Engines
  • Vortec 4300 V6
  • Vortec 4800 V8
  • Vortec 5300 V8 — gasoline LM7 and separately conditional flexible-fuel L59 references
Transmissions
Four-speed automatic overdrive — documented for LT Extended Cab; exact model and ratios are not assigned here
Body styles
1500 Regular Cab, short or long box, 1500 Extended Cab, short or long box; Fleetside and conditional Sportside offerings require their own equipment checks

Year over year

What changed

  • Restyled front end with a revised hood, grille, lamps and wheel openings.
  • Revised instrument cluster, Driver Information Center and electrical architecture.
  • Electronic throttle on small-block V8 engines; flexible-fuel 5300 availability remains distinct from gasoline LM7 identity.
  • Quadrasteer availability expanded to the separate 1500HD Crew Cab family; it was not standard on every 1500.

Worth knowing

Notable

  • ProTec was described for 1500 Extended Cab short-box applications excluding Quadrasteer. Two-wheel-drive traction control required the stated V8, automatic and locking-differential equipment.
  • The retained order guide is headed model year 2003 but carries a March 30, 2004 publication footer. Its LT LM7 standard-equipment cell and long-box footnote remain separate from the September 2002 consumer brochure. Conflicting output figures are not reconciled by assumption.
  • The configurations below cover two documented 1500 LT long-box versions; more versions remain under research. Ownership guidance covers selected scheduled services, routine checks and inspections; it is not a complete equipment-specific maintenance checklist. Cassette-player, dual-rear-wheel, manual-clutch, Allison and automatic-transfer-case instructions require verification of the fitted equipment and are not assigned here. Follow the complete original manual and its safety procedures.

Maintenance & service parts

Keep your 2003 Silverado on the road

Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.

Service desk

What this car needs & when

Use this as a service-planning checklist for 2003 Chevrolet Silverado. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.

Service topics
12
Scheduled topics
12
Applicability stated
12
Exact references
2

Before ordering Identify your engine, options and build date. Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.

  • Gasoline engine oil and filterView intervals, applicability and sources

    Gasoline engine oil and filter

    Exact reference available

    Follow the GM Oil Life System and change oil and filter at least annually. When the oil-change message appears, service as soon as possible within the next two fuel stops. Reset after every change and maintain the proper oil level. If reset accidentally, change oil at 3,000 miles since the previous change.

    Applies to: 2003 · 4800 V8, 5300 V8 · Only documented gasoline engine identities. Diesel, unknown/flexible-fuel identity and carryover-body applications require separate evidence; a shared engine name alone is not a body identification.

    Published interval: 12 months · Annual maximum or earlier service under the Oil Life System message; apply the exact two-fuel-stop and accidental-reset conditions.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 5-14/PDF 389; printed 6-5–6/PDF 504–505 · checked

    Period oil-filter reference — verify gasoline 5300 VIN T

    The 2003 owner manual identifies Vortec 5300 VIN T and lists ACDelco PF44 for that VIN. Confirm VIN T and the installed part before ordering. This period reference does not establish current supersession or stock.

    Applies to: 2003 · 5300 V8 · Confirm the actual gasoline engine is VIN T before ordering; the configuration does not assert a VIN code. Optional L59/flexible-fuel identity is excluded.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 5-122 and 5-124 / PDF 497 and 499 · checked

    Verified ordering references

  • Fuel-filter replacementView intervals, applicability and sources

    Fuel-filter replacement

    Sourced interval available

    Replace at the 30,000-mile service points in the original 2003 schedule. No replacement part number or current fitment is assigned by this guidance.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LM7 LT Extended Cab long-box records. Other engines and optional L59 flexible-fuel equipment require separate evidence.

    Published interval: 30,000 mi · Original 2003 scheduled fuel-filter replacement; use the correct vehicle and engine identity.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-7–6-9 / PDF 506–508 · checked

  • Engine-air filter and optional restriction indicatorView intervals, applicability and sources

    Engine-air filter and optional restriction indicator

    Sourced interval available

    Replace the engine-air filter at the 30,000-mile service points. The schedule also calls for dusty-condition inspection at 15,000, 45,000 and 75,000 miles, with replacement if needed. An optional indicator does not remove the scheduled replacement requirement.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LM7 LT Extended Cab long-box records. Other engines and optional L59 flexible-fuel equipment require separate evidence.

    Published interval: 30,000 mi · Scheduled replacement, with earlier dusty-condition inspection/replacement and the optional indicator instructions below.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-6–6-9 / PDF 505–508 · checked

    Additional restriction-indicator checks, if equipped

    Check at least twice a year or when the oil is changed, whichever comes first; inspect more often in dusty areas or off-road use. Replace the filter when both service windows turn orange, then reset the indicator. These checks do not substitute for the 30,000-mile schedule.

    Applies to: 2003 · 5300 V8 · Only vehicles fitted with an air-filter restriction indicator; check installed hardware.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 5-23 and 6-12 / PDF 398 and 511 · checked

  • Spark-plug replacement and plug-wire inspectionView intervals, applicability and sources

    Spark-plug replacement and plug-wire inspection

    Exact reference available

    Replace the spark plugs and inspect the plug wires. The inspection instruction does not mean automatic wire replacement. The conditional period references below require verification that the actual gasoline engine is VIN T; no current supersession or stock is established.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LM7 LT Extended Cab long-box records. Other engines and optional L59 flexible-fuel equipment require separate evidence.

    Published interval: 100,000 mi · Replace plugs; inspect wires under the original 2003 schedule.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-10 / PDF 509 · checked

    Period spark-plug alternatives — verify gasoline 5300 VIN T

    The 2003 manual lists ACDelco 41-974 or NGK PZTR5A15 in the VIN-T spark-plug cell. These are alternative period references, not a pair to install together. Verify VIN T and the installed engine before ordering; no current replacement, stock or supersession is asserted.

    Applies to: 2003 · 5300 V8 · Only the documented 2003 LM7 LT long-box records; confirm the actual gasoline engine is VIN T. No L59/flexible-fuel, unknown or other-engine application is established.

    Source: GM 2003 Silverado owner manual — exact-year VIN and replacement tables · Printed 5-122 and 5-124 / PDF 497 and 499; Vortec 5300 VIN T identity and T-column spark-plug row, with ACDelco/NGK brand footnotes · checked

    Verified ordering references

  • Cooling-system serviceView intervals, applicability and sources

    Cooling-system service

    Sourced interval available

    Drain, flush and refill the cooling system at 150,000 miles or 60 months since the last service, whichever occurs first. Inspect hoses, clean the radiator, condenser, pressure cap and neck, and pressure-test the system and cap. No current fluid product or ordering reference is assigned here.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LM7 LT Extended Cab long-box records. Other engines and optional L59 flexible-fuel equipment require separate evidence.

    Published interval: 150,000 mi / 60 months · Whichever occurs first; the 60-month period is since the last service.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-10 / PDF 509 · checked

  • Chassis lubricationView intervals, applicability and sources

    Chassis lubrication

    Sourced interval available

    Period manual specification: NLGI #2, Category LB or GC-LB chassis lubricant

    The manual lists the front suspension, ball joints, steering linkage, transmission shift linkage and parking-brake cable guides. Do not lubricate ball joints unless the joints themselves are at least 10°F (−12°C); colder joints could be damaged. This is component temperature, not an inferred ambient-temperature rule. No current grease product or ordering part number is assigned.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LM7 LT Extended Cab long-box records; this is not a complete chassis service checklist.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-6 / PDF505; lubricant specification printed6-19 / PDF518 · checked

    With every engine-oil and filter change

    Lubricate at each oil/filter service under the original Oil Life System; no separate fixed routine mileage is assigned. Follow the listed points and ball-joint temperature precaution.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LM7 LT Extended Cab long-box records; this is not a complete chassis service checklist.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-6 / PDF505; lubricant specification printed6-19 / PDF518 · checked

    Severe commercial operation

    The manual adds regular lubrication every 3,000 miles for this use condition; the same component-temperature precaution still applies.

    Applies to: 2003 · 5300 V8 · Only severe commercial operating conditions; same documented vehicle scope

    Published interval: 3,000 mi · Severe commercial operation only; not a universal chassis-lubrication interval.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-6 / PDF505; lubricant specification printed6-19 / PDF518 · checked

  • Owner checks, body care and professional inspectionsView intervals, applicability and sources

    Owner checks, body care and professional inspections

    Sourced interval available

    Use the complete original procedures and safety precautions. Starter, shift-lock, ignition/transmission-lock and parking-brake tests can cause vehicle movement; consult printed 6-13–15 or a qualified service center rather than use an abbreviated test. Repairs are required when faults are found. No manual-clutch or dual-rear-wheel duty is assigned to these records.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-8,6-11–17 / PDF504,507,510–516 · checked

    At each fuel fill

    Check engine-oil, engine-coolant and windshield-washer levels at each fuel fill. Use the correct fluids and original instructions; this is not a fixed fluid-replacement interval.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-8,6-11–17 / PDF504,507,510–516 · checked

    At least monthly

    No universal tire pressure is inferred.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 1 month · Check tire inflation, including the spare, to the vehicle-specific recommended pressures.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-8,6-11–17 / PDF504,507,510–516 · checked

    At least twice yearly

    Inspect steering/suspension, exhaust and nearby body, fuel, cooling, throttle and brakes. Brake use may require more frequent inspections; cooling-system and pressure-cap pressure testing is recommended at least annually. Apply weatherstrip silicone grease as directed, more often in very cold, damp conditions. Do not lubricate accelerator or cruise-control cables where such cables are fitted; this does not assert that these electronic-throttle records have them. Installed-hardware warnings and repair instructions remain in the manual; no regular airbag replacement interval is assigned.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 6 months · Check restraint-system condition, wiper blades, secure spare-tire storage and automatic-transmission fluid level; investigate fluid loss. Have the professional inspections in printed 6-16–17 performed at least twice yearly.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-8,6-11–17 / PDF504,507,510–516 · checked

    Evaporative-control inspection

    At the listed 60,000-mile service point, inspect fuel/vapor lines and hoses for connection, routing and condition; check the purge valve if equipped and replace faulty components as needed. Follow the manual’s subsequent repetition instructions. This is inspection and conditional repair, not automatic replacement of an entire system.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-8,6-11–17 / PDF504,507,510–516 · checked

    At least annually and each spring

    The original annual safety checks require the full manual procedures and movement precautions. No current lubricant product is specified here.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 12 months · Lubricate key locks and listed body hardware at least annually; corrosive exposure may require more frequent lubrication. Flush corrosive material from the underbody at least each spring.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-8,6-11–17 / PDF504,507,510–516 · checked

  • Automatic transmission fluid and filter serviceView intervals, applicability and sources

    Automatic transmission fluid and filter service

    Sourced interval available

    Verify the installed transmission and vehicle GVWR. This source-only guidance assigns no exact gearbox model, fluid product or filter reference. Allison-only 25,000-mile service is not assigned to these M30-class records. Follow the manual’s repetition instructions after 100,000 miles.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5, 6-8, 6-10 / PDF504,507,509 · checked

    Higher-GVWR or listed severe use

    The manual also separately names Allison transmissions; those type-specific schedules require identification and are not inferred here.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 50,000 mi · Change automatic-transmission fluid and filter if GVWR exceeds 8,600 lb or the vehicle is mainly driven under any one or more of these conditions: heavy city traffic regularly at 90°F (32°C) or hotter; hilly/mountainous terrain; frequent trailer towing; or taxi/police/delivery-type service.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5, 6-8, 6-10 / PDF504,507,509 · checked

    Non-Allison without the listed conditions

    This does not replace the 50,000-mile conditional branch.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 100,000 mi · For a non-Allison transmission without the listed higher-GVWR or severe-use conditions, change fluid and filter at 100,000 miles.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5, 6-8, 6-10 / PDF504,507,509 · checked

  • Axle checks and tire rotationView intervals, applicability and sources

    Axle checks and tire rotation

    Sourced interval available

    Rotate sooner for unusual wear and inspect alignment or damaged tires/wheels as directed. Rotation patterns depend on matching tread designs and single/dual rear wheels. Do not rotate front to rear when tread designs differ. Consult the original diagrams; no universal pattern or axle-fluid product is assigned. Tire rotation is also an opportunity to inspect brakes. Front-axle duties apply only where fitted.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 7,500 mi · At the listed 7,500-mile service points, check applicable axle-fluid levels and CV-joint/axle-seal leakage; rotate tires according to the actual fitted tire/wheel arrangement.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 5-74–75, 6-5–10 / PDF449–450,504–509 · checked

  • Four-wheel-drive front axle and transfer-case inspectionView intervals, applicability and sources

    Four-wheel-drive front axle and transfer-case inspection

    Sourced interval available

    Investigate fluid loss and repair if required. Check transfer-case vent-hose installation/kinks. Lubricate a manual-shift transfer-case control-lever pivot only if that hardware is fitted; off-road use can require more frequent lubrication. Four-wheel drive does not establish automatic-transfer-case equipment or its separate fluid-change schedule. No fluid product is assigned.

    Applies to: 2003 · 5300 V8 · Documented 4WD record only. Verify installed transfer-case type; four-wheel drive alone does not identify it.

    Published interval: 12 months · Check the front axle and transfer case every 12 months or at engine-oil-change intervals; add the specified lubricant when necessary.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-17 / PDF516 · checked

  • Positive crankcase ventilation inspectionView intervals, applicability and sources

    Positive crankcase ventilation inspection

    Sourced interval available

    This applies only to the documented gasoline 5300 scope. Follow the manual’s repeating-service instructions; no replacement valve is assigned.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 100,000 mi · Inspect the PCV valve; the source excludes the 8.1L engine. Inspection is not automatic replacement.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-10 / PDF504,509 · checked

  • Accessory-drive belt inspectionView intervals, applicability and sources

    Accessory-drive belt inspection

    Sourced interval available

    Inspection does not mean automatic replacement. No current belt specification or ordering reference is inferred.

    Applies to: 2003 · 5300 V8 · Only the two documented gasoline LT Extended Cab long-box records; no complete annual service or equipment claim.

    Published interval: 150,000 mi · Inspect the engine accessory-drive belt at the listed 150,000-mile service point and repeating interval.

    Source: Chevrolet 2003 Silverado original owner manual · Printed 6-5,6-10 / PDF504,509 · checked

Collect

Bring this model year home

Find a scale model using the exact year, make, and model—not a generic generation search.

Sources

  1. Chevrolet 2003 Silverado 1500 restoration kit: product information and dated order guide
  2. Chevrolet Commercial Trucks brochure, September 2002 edition for 2003, reproduced copy
  3. Chevrolet 2003 Silverado original owner manual

Other First Silverado 1500 design years

All First Silverado 1500 design · Original nameplate and Classic overlap years →

Documented lineup

Find your exact 2003 Silverado

Start with a family, body style, or engine. Every card opens the facts and maintenance information for that factory version.

2factory configurations
Exact factory pairings documentedHow this lineup was verified

These source-backed records identify published body, engine, and transmission combinations. Exact pairings do not by themselves assert that every factory option or special edition is represented.

2versions shown
Browse 2 documented records — use the filters above to narrow the list
Extended Cab Fleetside long box (E63)

Silverado 1500 LT Long Box 2WD

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version
Extended Cab Fleetside long box (E63)

Silverado 1500 LT Long Box 4WD

Body
Extended Cab Fleetside long box (E63)
Engine
Vortec 5300 V8 (LM7)
Gearbox
M30 4-speed automatic with overdrive
Built
Regular production
Open exact version

Browse by tag

← All Chevrolet Silverado years
