First generation · Classic compact 4x4 · 1966–1977
1977Ford Bronco
The original compact, purpose-built off-roader that helped define the rugged-SUV idea — now a prized collectible.

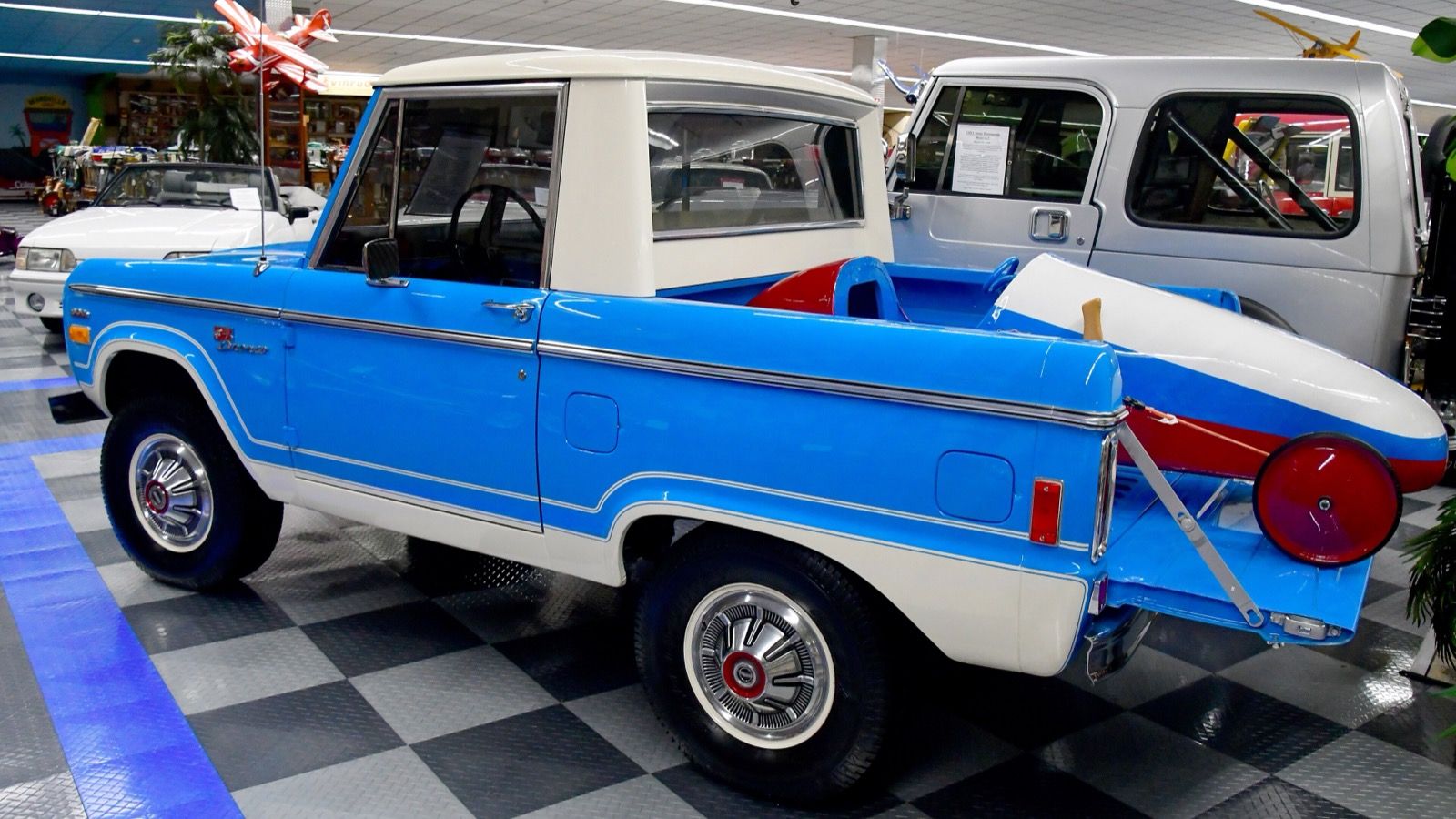

Photo: “1977 Ford Bronco (51839345395).jpg” by Eric Friedebach / Wikimedia Commons, licensed under CC BY 2.0. Cropped to 16:9.
Start here
What do you need to know?
This page covers the whole 1977 Ford Bronco model year. Choose your task first; exact trims and engines are separated where the factory offered different versions.
Complete, source-verified lineup
Find your exact 1977 Bronco
Start with a family, body style, or engine. Every card opens the facts and maintenance information for that factory version.
Verified complete for the U.S.-marketHow this lineup was verified
We checked this U.S.-market lineup against period sources for factory body/series roster and brochure-supported engine/transmission combinations. Every version shown below has its own detail page.
Verified 2026-09-01 from Ford — 1977 Bronco factory brochure.
Bronco, 302 cu. in. V8, three-speed manual
- Body
- Two-door short-wheelbase four-wheel-drive wagon
- Engine
- 302 cu. in. V8
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Bronco, 302 cu. in. V8, SelectShift automatic
- Body
- Two-door short-wheelbase four-wheel-drive wagon
- Engine
- 302 cu. in. V8
- Gearbox
- SelectShift Cruise-O-Matic automatic
- Built
- Regular production
Sport Bronco, 302 cu. in. V8, three-speed manual
- Body
- Two-door short-wheelbase four-wheel-drive wagon
- Engine
- 302 cu. in. V8
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Sport Bronco, 302 cu. in. V8, SelectShift automatic
- Body
- Two-door short-wheelbase four-wheel-drive wagon
- Engine
- 302 cu. in. V8
- Gearbox
- SelectShift Cruise-O-Matic automatic
- Built
- Regular production
No factory configuration matches those filters.
The 1977 model year
Overview
The final first-generation Bronco retained its standard 302-cubic-inch V8 and the choice of synchronized three-speed manual or SelectShift Cruise-O-Matic automatic. Ford presented the Bronco and Sport Bronco with Ranger as an optional package, all using the enclosed two-door 92-inch-wheelbase body.
Specifications
- Engines
- 302 cu. in. V8
- Transmissions
- Three-speed fully synchronized manual, SelectShift Cruise-O-Matic automatic
- Body styles
- Two-door short-wheelbase four-wheel-drive wagon
Year over year
What changed
- This was the final year of the compact first-generation Bronco before the 1978 full-size redesign.
- Ford retained the standard 302 V8 and manual/optional-automatic transmission structure.
- Ranger continued as an equipment package rather than a separate factory body or powertrain line.
Worth knowing
Notable
- Ford's specifications list front disc brakes and rear drum brakes.
- The 92-inch wheelbase remained unchanged through the compact Bronco's final year.
Living with it
Reliability & ownership notes
- Confirm transmission and axle equipment before ordering driveline parts.
- Verify Sport/Ranger authenticity from factory records because package trim is readily added or replaced.
Maintenance & service parts
Keep your 1977 Bronco on the road
Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.
Service desk
What this car needs & when
Use this as a service-planning checklist for 1977 Ford Bronco. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.
- Service topics
- 3
- Factory intervals
- 3
- Fitment-scoped
- 3
- Exact references
- 1
Before orderingIdentify your engine, options and build date.Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.
Engine oil and filter
Exact reference available
Source: Chilton — Ford Bronco 1966–81 preventive-maintenance tables (1981 edition) · General Information and Maintenance, printed pages 38–39 — 1975–77, 5 months/5,000 miles: crankcase, change oil and filter · checked
1977 cataloged Bronco engines
K&N HP-3001
Source: K&N — Ford Bronco replacement oil-filter catalog · 1977 Ford Bronco engine application rows — HP-3001 · checked
Verified ordering references
- Service replacementK&N HP-3001
Qty. 1 · Spin-on engine oil filter · catalog-listed
K&N's manufacturer catalog lists HP-3001 for the 1977 Bronco 302 cu. in. V8 application. Confirm the installed engine before ordering.
Catalog: K&N — Ford Bronco replacement oil-filter catalog · 1977 Ford Bronco 302 cu. in. V8 oil-filter application — HP-3001 · checked
Search this part on Amazon
Engine coolant — drain, flush and replace
Sourced interval available
Source: Chilton — Ford Bronco 1966–81 preventive-maintenance tables (1981 edition) · General Information and Maintenance, printed page 39 — every 24 months: change coolant and flush · checked
Brake and front-wheel-bearing service
Sourced interval available
Source: Chilton — Ford Bronco 1966–81 preventive-maintenance tables (1981 edition) · General Information and Maintenance, printed page 39 — 20 months/20,000 miles brake and front-wheel-bearing rows · checked
Collect
Bring this model year home
Find a scale model using the exact year, make, and model—not a generic generation search.
