First generation · Classic compact 4x4 · 1966–1977
1970Ford Bronco
The original compact, purpose-built off-roader that helped define the rugged-SUV idea — now a prized collectible.

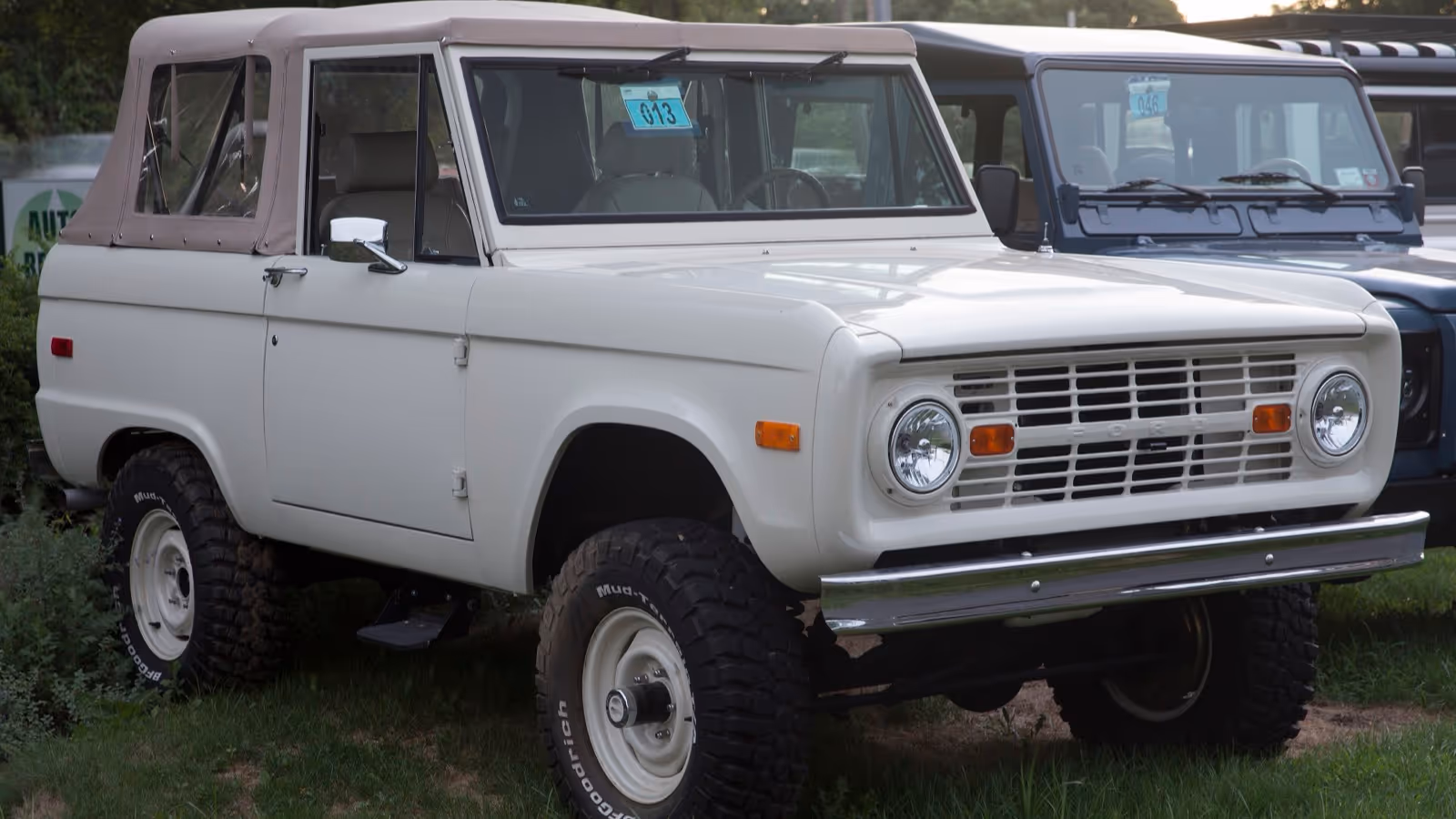

Photo: “1970 Ford Bronco in light gray, front right.jpg” by Mr.choppers / Wikimedia Commons, licensed under CC BY-SA 4.0. Cropped to 16:9.
Quick facts
- Engines
- 2offered170 cu. in. inline-six → 302 cu. in. two-barrel V8
- Top output
- 205hp302 cu. in. two-barrel V8
Body stylesPickup · Wagon
Start here
What do you need to know?
This page covers the whole 1970 Ford Bronco model year. Choose your task first; exact trims and engines are separated where the factory offered different versions.
Complete, source-verified lineup
Find your exact 1970 Bronco
Start with a family, body style, or engine. Every card opens the facts and maintenance information for that factory version.
Verified complete for the U.S.-marketHow this lineup was verified
We checked this U.S.-market lineup against period sources for factory body/series roster and brochure-supported engine/transmission combinations. Every version shown below has its own detail page.
Verified 2026-09-01 from Ford — 1970 Bronco factory brochure.
Bronco Wagon, 170 cu. in. six, three-speed manual
- Body
- Full-roof two-door wagon
- Engine
- 170 cu. in. inline-six (105 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Bronco Wagon, 302 cu. in. V8, three-speed manual
- Body
- Full-roof two-door wagon
- Engine
- 302 cu. in. two-barrel V8 (205 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Bronco Pickup, 170 cu. in. six, three-speed manual
- Body
- Short-roof two-door pickup
- Engine
- 170 cu. in. inline-six (105 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Bronco Pickup, 302 cu. in. V8, three-speed manual
- Body
- Short-roof two-door pickup
- Engine
- 302 cu. in. two-barrel V8 (205 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Sport Bronco Wagon, 170 cu. in. six, three-speed manual
- Body
- Sport-trim full-roof two-door wagon
- Engine
- 170 cu. in. inline-six (105 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Sport Bronco Wagon, 302 cu. in. V8, three-speed manual
- Body
- Sport-trim full-roof two-door wagon
- Engine
- 302 cu. in. two-barrel V8 (205 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Sport Bronco Pickup, 170 cu. in. six, three-speed manual
- Body
- Sport-trim short-roof two-door pickup
- Engine
- 170 cu. in. inline-six (105 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
Sport Bronco Pickup, 302 cu. in. V8, three-speed manual
- Body
- Sport-trim short-roof two-door pickup
- Engine
- 302 cu. in. two-barrel V8 (205 gross hp)
- Gearbox
- Three-speed fully synchronized manual
- Built
- Regular production
No factory configuration matches those filters.
The 1970 model year
Overview
The 1970 Bronco continued as regular and Sport versions of the Wagon and Pickup, with the Roadster absent from Ford's factory brochure. The standard 170-cubic-inch six and optional 302-cubic-inch V8 both used the synchronized three-speed manual and two-speed transfer case.
Specifications
- Engines
- 170 cu. in. inline-six105 hp
- 302 cu. in. two-barrel V8205 hp
- Transmissions
- Three-speed fully synchronized manual
- Body styles
- Pickup, Wagon
Year over year
What changed
- Ford retained the four regular/Sport Wagon and Pickup models without reviving the Roadster.
- The factory table rates the standard 170 six at 105 gross horsepower and the optional 302 V8 at 205 gross horsepower.
- The synchronized three-speed manual remained the only transmission listed.
Worth knowing
Notable
- Both brochure-listed engines used special carburetor and fuel-pump equipment for steep grades.
- Ford again advertised 6,000-mile chassis lubrication, oil and oil-filter changes, and air-cleaner service.
Living with it
Reliability & ownership notes
- Confirm regular versus Sport trim and original Wagon/Pickup body identity before restoration because decades of removable-body and trim changes can obscure the factory model.
- Verify the installed engine and transmission before ordering service parts; surviving Broncos commonly have later powertrain conversions.
Maintenance & service parts
Keep your 1970 Bronco on the road
Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.
Service desk
What this car needs & when
Use this as a service-planning checklist for 1970 Ford Bronco. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.
- Service topics
- 3
- Factory intervals
- 3
- Fitment-scoped
- 3
- Exact references
- 1
Before orderingIdentify your engine, options and build date.Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.
Engine oil and oil filter
Exact reference available
Source: Ford — 1970 Bronco factory brochure · Powertrain page — 6,000-mile oil and oil-filter change · checked
1970 cataloged Bronco engines
K&N HP-3001
Source: K&N — Ford Bronco replacement oil-filter catalog · 1970 Ford Bronco engine application rows — HP-3001 · checked
Verified ordering references
- Service replacementK&N HP-3001
Qty. 1 · Spin-on engine oil filter · catalog-listed
K&N's manufacturer catalog lists HP-3001 for the 1970 Bronco 170 cu. in. inline-six (105 gross hp) or 302 cu. in. two-barrel V8 (205 gross hp) application. Confirm the installed engine before ordering.
Catalog: K&N — Ford Bronco replacement oil-filter catalog · 1970 Ford Bronco 170 cu. in. inline-six (105 gross hp) or 302 cu. in. two-barrel V8 (205 gross hp) oil-filter application — HP-3001 · checked
Search this part on Amazon
Engine air cleaner — service
Sourced interval available
Source: Ford — 1970 Bronco factory brochure · Powertrain page — 6,000-mile air-cleaner service · checked
Chassis lubrication
Sourced interval available
Source: Ford — 1970 Bronco factory brochure · Powertrain page — 6,000-mile chassis lubrication · checked
Collect
Bring this model year home
Find a scale model using the exact year, make, and model—not a generic generation search.
