Third generation · Fox-body · 1979–1993
1986Ford Mustang
The long-running Fox-body, built on Ford’s Fox platform from 1979 to 1993.

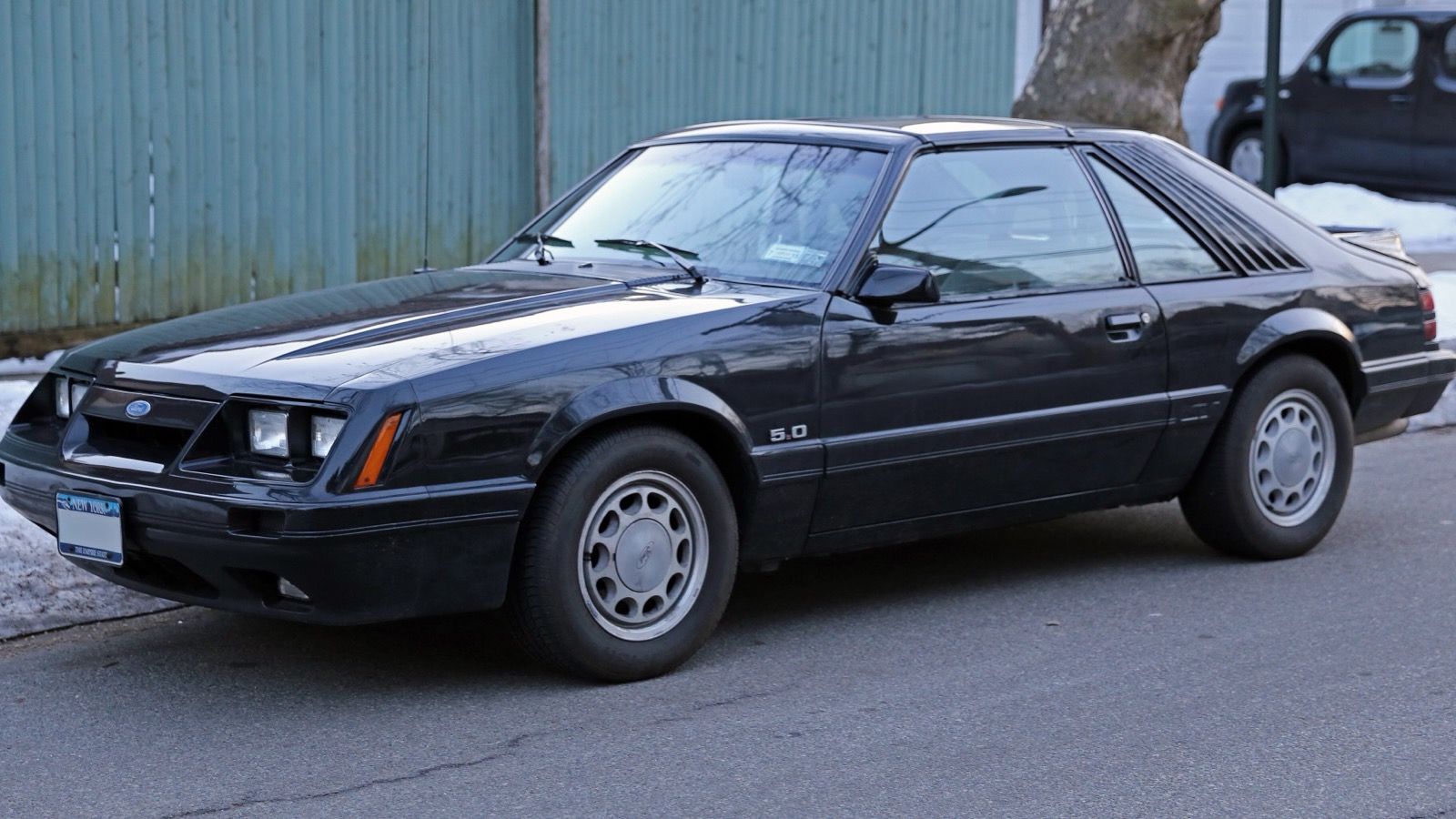

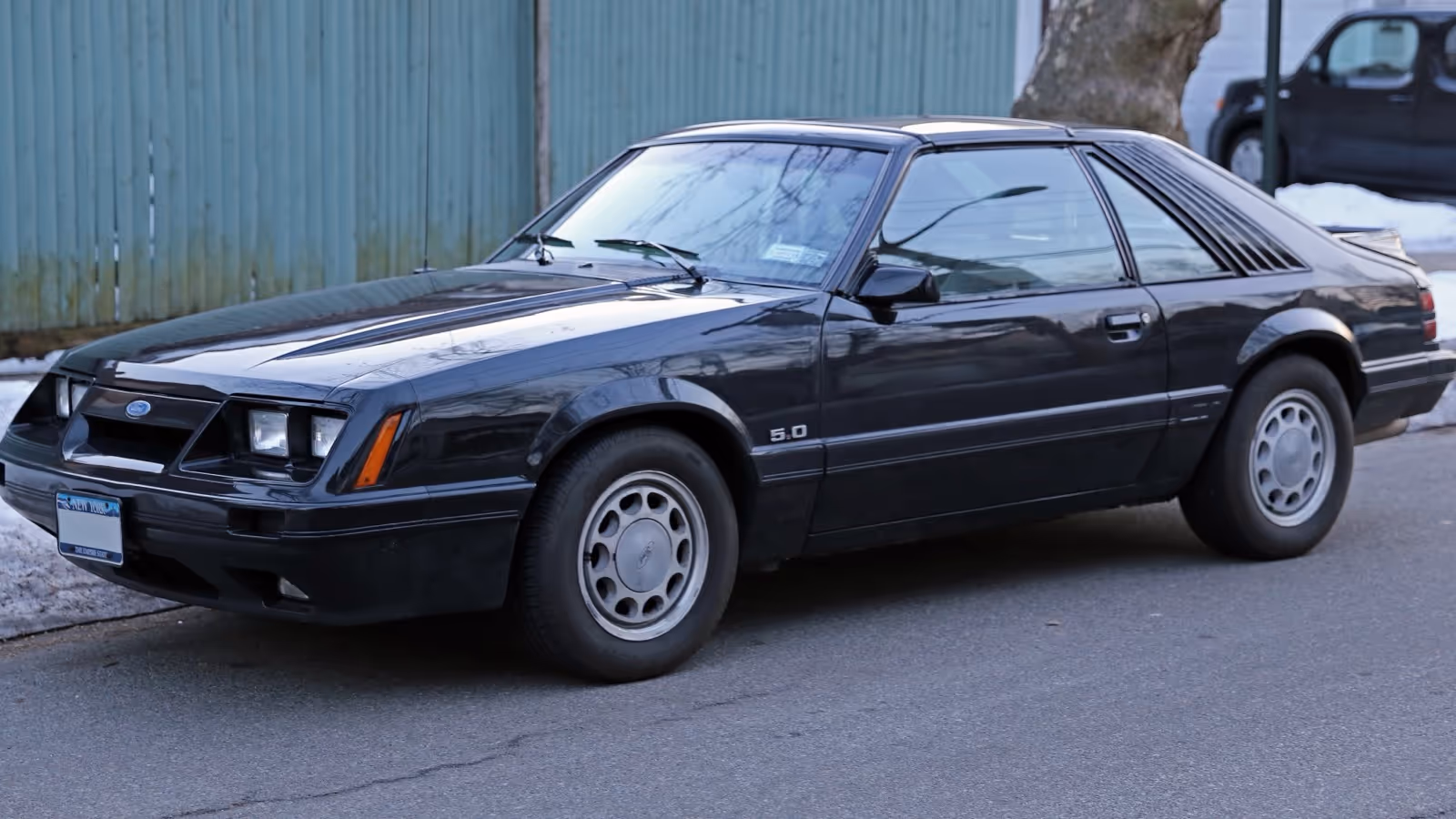

Photo: “1986 Ford Mustang GT 5.0 T-top.jpg” by Mr.choppers / Wikimedia Commons, licensed under CC BY-SA 3.0. Cropped to 16:9.
Quick facts
- Engines
- 4offered2.3 I4 → 302 "5.0 HO" V8 (sequential multiport EFI, new)
- Top output
- 200hp2.3 Turbo SVO (final year)
- Production
- 224,410units
- Base price
- $7,420LX coupe
- Today
- ≈$21,200inflation-adjusted MSRP, not market value
Body stylesCoupe (notchback) · Hatchback (3-door) · Convertible
The 1986 model year
Overview
The 5.0 went fully fuel-injected. Ford fitted sequential multiport electronic fuel injection (SEFI, speed-density) to the 302 — rated at 200 hp, a slight on-paper dip from the 210-hp carbureted 1985 but a major driveability and reliability gain. A stronger 8.8-inch rear axle arrived behind the V8. It was the final year for the SVO. (Horsepower figures are SAE net.)
Specifications
- Engines
- 2.3 I488 hp
- 2.3 Turbo SVO (final year)200 hp
- 3.8 V6120 hp
- 302 "5.0 HO" V8 (sequential multiport EFI, new)200 hp
- Transmissions
- 5-speed manual (T-5), AOD 4-speed automatic
- Body styles
- Coupe (notchback), Hatchback (3-door), Convertible
- Base price
- $7,420 (LX coupe)See what that's worth today →
- Production
- 224,410
Year over year
What changed
- The 5.0 HO switched to sequential multiport EFI (SEFI, speed-density) — the first multiport-injected 302 — rated 200 hp.
- A stronger 8.8-inch rear axle replaced the 7.5-inch behind the V8.
- The carbureted 5.0 was retired; the carburetor era ended.
- Final model year for the SVO (rated 200 hp).
Worth knowing
Notable
- First fuel-injected (multiport) 5.0 — the start of the modern EFI 5.0.
- Last year of the SVO (9,844 built across 1984–86).
Living with it
Reliability & ownership notes
- The 1986 SEFI 5.0 used low-flow cylinder heads (small valves), so it dynos softer than the 1987-up 5.0 despite the same on-paper drop — a quirk collectors and tuners know well.
- Multiport injection greatly improved cold-start, idle, and reliability versus the carbureted cars.
- Inspect for Fox-body rust.
What it costs now
Price today
Current market value
We don't publish a market estimate for the 1986 model year yet. A valuation ships here only when it can be sourced and dated — we'd rather show nothing than a number we can't stand behind.
Original MSRP adjusted for inflation (CPI, 2024); not the car's current market/collector value. Source: U.S. Bureau of Labor Statistics, CPI-U (U.S. city average, all items), annual average.
Maintenance & service parts
Keep your 1986 Mustang on the road
Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.
Service desk
What this car needs & when
Use this as a service-planning checklist for 1986 Ford Mustang. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.
- Service topics
- 7
- Scheduled topics
- 6
- Applicability stated
- 7
- Exact references
- 1
Before ordering Identify your engine, options and build date. Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.
Engine oil and filterView intervals, applicability and sources
Engine oil and filter
Sourced interval available
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
2.3L turbo — normal service
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Severe service — all engines
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Engine oil filterView intervals, applicability and sources
Engine oil filter
Exact reference available
Manufacturer application-catalog fitment only; this does not establish an oil-change interval.
2.3-liter inline-four
Baldwin B2
Source: Baldwin Filters — Automotive Applications catalog (2017) · Pre-1980 Applications section — Ford 1986, Mustang 2.3-liter inline-four row · checked
Verified ordering references
- Service replacementBaldwin B2
Qty. 1 · Engine oil filter · catalog-listed
Baldwin's manufacturer application table lists this filter for the stated model year and engine. Confirm the VIN and installed engine before ordering.
Catalog: Baldwin Filters — Automotive Applications catalog (2017) · Pre-1980 Applications section — Ford 1986, Mustang 2.3-liter inline-four row · checked
Search this part on Amazon
Spark plugsView intervals, applicability and sources
Spark plugs
Sourced interval available
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
2.3L turbo
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Engine air-filter elementView intervals, applicability and sources
Engine air-filter element
Sourced interval available
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
5.0L HO V8
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Engine coolantView intervals, applicability and sources
Engine coolant
Sourced interval available
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Crankcase ventilation filterView intervals, applicability and sources
Crankcase ventilation filter
Sourced interval available
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Automatic transmission fluidView intervals, applicability and sources
Automatic transmission fluid
Sourced interval available
Source: Operation CHARM — 1986 Ford Mustang factory service schedule mirror · Normal and Severe Service 3,000/7,500/15,000/30,000-mile records; all four listed Mustang engine manuals cross-checked · checked
Collect
Bring this model year home
Find a scale model using the exact year, make, and model—not a generic generation search.
Famous variants this year
Sources
- Wikipedia — "Ford Mustang (third generation)"
- Wikipedia — "Ford Mustang SVO"
- FoxStang — 5.0 Fox-body engine specs
- LMR (Late Model Restoration)
- MustangSpecs — per-year base MSRP
