200 I6
- Displacement
- 200cu in
- Layout
- I6
- Induction
- 1-barrel
- Compression
- 9.2:1
- Power
- 120hp@ 4,400 rpm
- Torque
- 190lb-ft@ 2,400 rpm
The standard engine on the great majority of 1966 cars.
First generation · Original / classic · 1964–1973
1966Ford Mustang
The original pony car. Launched April 1964 (the famous “1964½” cars, titled as 1965s) and produced through 1973.

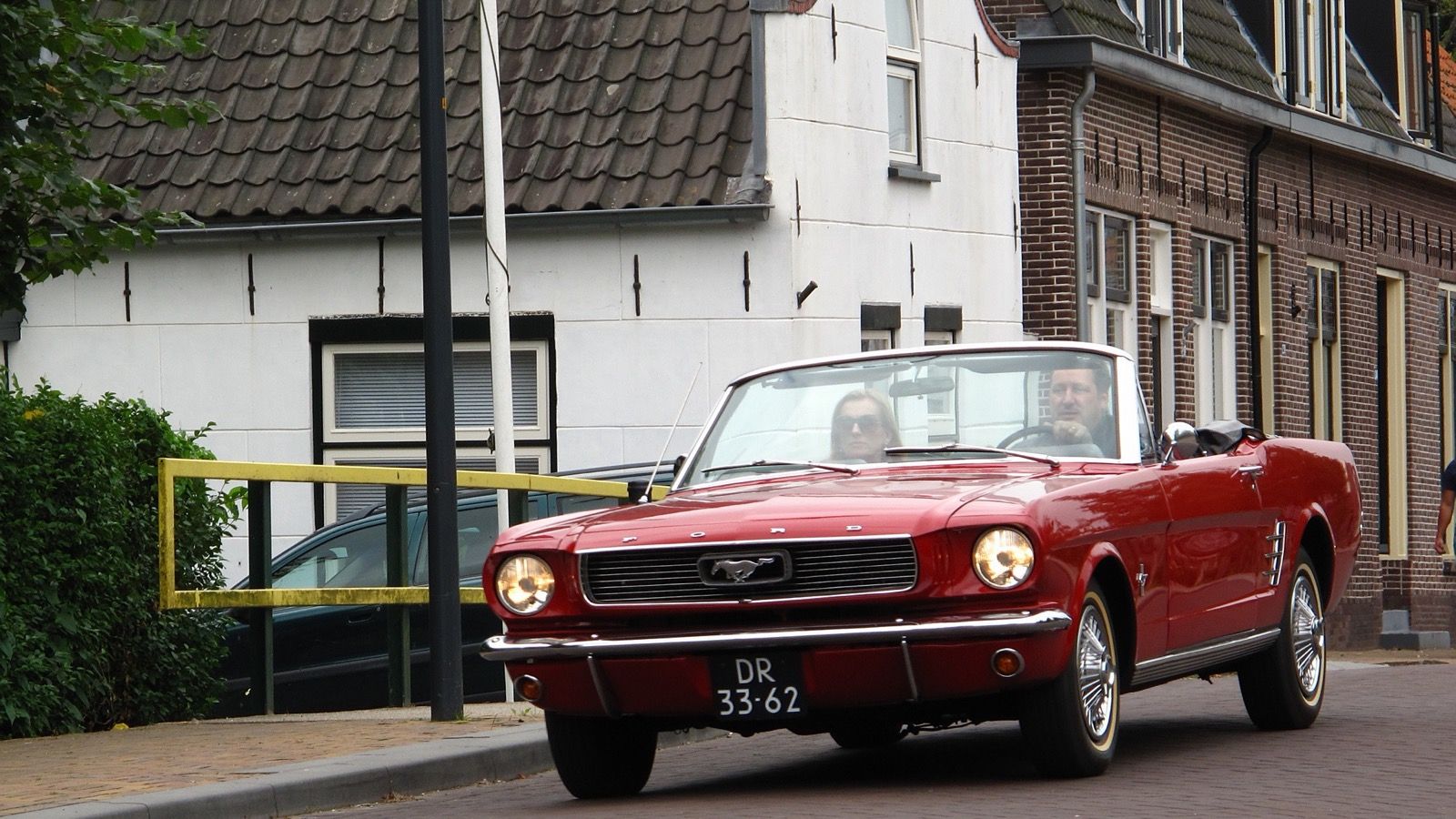

Photo: “1966 Ford Mustang Convertible 3.3 front” by Rutger van der Maar / Wikimedia Commons, licensed under CC BY 2.0. Cropped to 16:9.
Quick facts
- Engines
- 4offered200 I6 → 289 "K-code" Hi-Po
- Top output
- 271hp289 "K-code" Hi-Po
- Production
- 607,568units
- Base price
- $2,416base hardtop
- Today
- ≈$23,400inflation-adjusted MSRP, not market value
Body stylesHardtop · Fastback · Convertible
Start here
What do you need to know?
This page covers the whole 1966 Ford Mustang model year. Choose your task first; exact trims and engines are separated where the factory offered different versions.
Documented lineup
Find your exact 1966 Mustang
Start with a family, body style, or engine. Every card opens the facts and maintenance information for that factory version.
1factory configurations
Exact factory pairings documentedHow this lineup was verified
These source-backed records identify published body, engine, and transmission combinations. Exact pairings do not by themselves assert that every factory option or special edition is represented.
No factory configuration matches those filters.
The 1966 model year
Overview
A light trim and detail refresh — mechanically near-identical to 1965 — and the Mustang’s best year ever at 607,568 cars.
Specifications
- Engines
- 200 I6120 hp
- 289 2-bbl200 hp
- 289 4-bbl225 hp
- 289 "K-code" Hi-Po271 hp
- Transmissions
- 3-speed manual, 4-speed manual, C4 automatic
- Body styles
- Hardtop, Fastback, Convertible
- Dimensions
- Wheelbase 108.0 in · Length 181.6 in · Width 68.2 in · Track 56.0 in front / 56.0 in rear · Height 51.1 in (hardtop)
- Base price
- $2,416 (base hardtop)See what that's worth today →
- Production
- 607,568
Decode your VIN
Engine codes
The engines offered for 1966, each with the VIN code letter that identifies it.
289 2-bbl "C-code"
- Displacement
- 289cu in
- Layout
- V8
- Induction
- 2-barrel
- Compression
- 9.3:1
- Power
- 200hp@ 4,400 rpm
- Torque
- 282lb-ft@ 2,400 rpm
289 4-bbl "A-code"
- Displacement
- 289cu in
- Layout
- V8
- Induction
- 4-barrel
- Compression
- 10.0:1
- Power
- 225hp@ 4,800 rpm
- Torque
- 305lb-ft@ 3,200 rpm
Sources split on compression: MustangSpecs publishes 10.0:1, Over-Drive 9.3:1. We show 10.0:1, the figure normally quoted for the A-code.
289 4-bbl "K-code" Hi-Po
- Displacement
- 289cu in
- Layout
- V8
- Induction
- 4-barrel
- Compression
- 10.5:1
- Power
- 271hp@ 6,000 rpm
- Torque
- 312lb-ft@ 3,400 rpm
Solid-lifter, high-revving, and the engine that most changes what a 1966 Mustang is worth. A K in the VIN is a claim worth verifying against the car itself, not just the paperwork.
Reference only. The engine code is the fifth character of the 11-character 1966 VIN. It records what Ford INSTALLED — it is not evidence that the engine now in the car is the original one, and it is not a statement of authenticity. Codes differ from year to year, so never decode a 1966 VIN against another year's table. A marque registry or a period-correct build record is the authority; this table is a reference only.
Sources: Average Joe Restoration — 1966 Mustang VIN & data plate decoder sheetClassic Industries — 1966 Ford Mustang data plate decoderOver-Drive Magazine — 1966 Ford Mustang fact sheet
How many were built
Production by body style
What Ford built for the 1966 model year, split by body style. These are body-style counts — they say nothing about which engine, colour or options a given car left the plant with.
Hardtop coupe65A / 65B / 65C499,75182.3%
- Standard422,416
- Luxury (Interior Decor Group)55,938
- Bench seat21,397
Fastback (2+2)63A / 63B35,6985.9%
- Standard27,809
- Luxury (Interior Decor Group)7,889
The rarest of the three 1966 body styles at under 6% of production.
Convertible76A / 76B / 76C72,11911.9%
- Standard56,409
- Luxury (Interior Decor Group)12,520
- Bench seat3,190
The best-selling convertible in the United States that year.
Model-year total607,568
The Mustang's best-ever model year. Every sub-split above sums to its body-style total, and the three body-style totals sum to 607,568. These are body-style counts, not option counts — they say nothing about which engine or colour a given car left the plant with.
Sources: MustangAttitude — 1966 production by body styleConceptcarz — 1966 Ford Mustang specificationsWikipedia — "Ford Mustang (first generation)"
What it cost new
Price by body style
Factory list prices as quoted in 1966, with each figure adjusted for inflation to 2024 dollars. The adjusted column is what the original price is worth in today's money — it is not what the car sells for now.
What these figures are: Base factory list price for a six-cylinder car, before options, destination charge, tax or dealer preparation. Almost no 1966 Mustang left a showroom at these numbers — the V8, automatic, power steering, air conditioning and the GT package each added meaningfully, and a well-optioned convertible could approach half as much again.
Hardtop coupe65A$2,416≈$23,400 in 2024
Base six-cylinder car. Widely published as $2,416.18; Conceptcarz's $2,415 is the same figure rounded.
Fastback (2+2)63APrice not published
PRICE OMITTED — three references publish three different figures ($2,519, $2,533 and $2,605) and no two agree, so none clears our bar. The fastback carried a premium over the hardtop and undercut the convertible; we would rather say that than pick one of three numbers.
Convertible76A$2,650≈$25,700 in 2024
Base six-cylinder car. Corroborated by two independent references.
Inflation adjustment uses annual CPI-U averages, rounded to the nearest $100. It is the 1966 sticker price in 2024 money, not a valuation — see Price today for what these cars actually trade for.
Period pricing for this car is genuinely messy: references differ on whether they quote factory list, port-of-entry or as-delivered pricing, and prices moved during the model year. We publish only figures we could corroborate against two independent sources.
Sources: Conceptcarz — 1966 Ford Mustang specificationsMustangAttitude — 1966 production by body styleMustangSpecs — 1966 Ford Mustang in-depth guide
Data plate
Factory colors
The 1966 exterior paint codes as they appear on the door data plate, with the colour name each code stands for.
The swatches are approximations, not colour matches. Each one is a hand-picked on-screen rendering. Period enamels have no published sRGB equivalent, metallics shift with viewing angle, and sixty years of sun and resprays mean no two surviving cars agree either. Take the code off your data plate to a paint supplier — never order paint from a screen.
- ARaven Black
- FArcadian Bluealso published as Light Blue
- HSahara Beige
- KNightmist Bluealso published as Night Mist BlueMetallic
- MWimbledon White
- PAntique Bronze
- QBrittany BlueMetallic
- RIvy Greenalso published as Dark Metallic GreenMetallic
- TCandyapple Redalso published as Candy Apple Red
- UTahoe Turquoise
- VEmbergloMetallicA 1966 signature colour and one of the hardest to represent on screen — it reads copper, orange or bronze depending on light.
- XVintage Burgundy
- YSilver Blue
- ZSauterne Goldalso published as Medium Sage MetallicMetallic
- 4Silver FrostMetallic
- 5Signalflare Redalso published as Signal Flare Red
- 8Springtime Yellow
Every swatch on this page is an APPROXIMATION for on-screen use — it is not a colour match. Period Ford enamels have no published sRGB equivalent, metallics change with viewing angle, and sixty years of sun and resprays mean no two surviving cars agree either. Never order paint from a screen: take the code from your door data plate to a paint supplier. Some codes appear on data plates with a leading digit (e.g. "5T" for Candyapple Red) and some colours were added during the model year, so a car built early may not offer a colour a later car does. A special Anniversary Gold was also used on 1966 promotional cars; we have not verified a data-plate code for it and so do not list one.
Sources: Average Joe Restoration — 1966 Mustang VIN & data plate decoder sheetClassic Industries — 1966 Ford Mustang data plate decoderMustangAttitude — 1966 Mustang paint colors
On paper
Dimensions & weights
Factory figures for a standard 1966 car. Where a figure genuinely differs between body styles, each body style is listed rather than averaged.
- Wheelbase
- 108.0 in (2,743 mm)
- Overall length
- 181.6 in (4,613 mm)
- Overall width
- 68.2 in (1,732 mm)
- Conceptcarz publishes 68.3 in — a rounding difference, not a different car.
- Overall height
- Varies by body style
- Hardtop51.1 in
- Fastback (2+2)51.6 in
- Convertible51.4 in
- MustangSpecs quotes a single 51 in figure for the range; the per-body figures are Over-Drive's.
- Track, front
- 56.0 in
- Track, rear
- 56.0 in
- Curb weight
- Varies by body style
- Hardtop2,606 lb
- Fastback (2+2)2,637 lb
- Convertible2,768 lb
- Base-engine cars. A 289 V8, automatic, power steering and air conditioning add materially — an optioned V8 convertible weighs well over 3,000 lb.
- Weight distribution
- 53% front / 47% rear
- Per MustangSpecs; the engine and options fitted move this figure, so treat it as representative rather than exact for your car.
Factory dimensions for a standard 1966 Mustang. Published weights vary widely between references because sources differ on shipping weight vs curb weight and on which engine is assumed — see the conflict note.
Sources: Over-Drive Magazine — 1966 Ford Mustang fact sheetMustangSpecs — 1966 Ford Mustang in-depth guideConceptcarz — 1966 Ford Mustang specifications
In the metal
Photos
The photograph at the top of this page is the only licence-cleared image we have verified as a 1966 car.
Only one licence-cleared photograph verified as a 1966 car is in the library so far. We would rather show one real 1966 than fill a grid with cars from adjacent years.
Year over year
What changed
- New slotted grille with a redesigned horse-and-corral emblem.
- Revised side ornamentation — three horizontal bars on the rear quarter.
- New wheel covers and fuel cap.
- The GT package continued (25,517 built).
- Mechanically a carryover year.
Worth knowing
Notable
- Best-selling US convertible that year (72,119 built).
- High Country Special (333 units).
- Export "T-5" badging in Germany.
Living with it
Reliability & ownership notes
- Rust is the deciding factor on a 1966 Mustang — the unibody has no separate frame, so structural corrosion is a repair bill, not a cosmetic one. Check the cowl, torque boxes, floor pans, shock towers and rear quarters before anything else.
- The 289 V8 and the 200 six are both durable, simple engines with excellent parts availability; a tired one is a known, affordable rebuild rather than a reason to walk away.
- Four-wheel drums were standard. Front discs were optional on V8 cars and are the single most worthwhile period-correct upgrade for a car that gets driven.
- Originality is worth more than a shiny respray: a straight, rust-free, correctly-documented car beats a cosmetically restored one with hidden filler every time.
Before you buy
Buyer's checklist
What to physically go and look at on a 1966 car, worst first, and what a bad result actually means. 6 of these are walk-away-or-price-for-it items.
- CriticalStructural or safety. Walk away, or price for a full repair.
- MajorExpensive, but bounded and known.
- ModerateNormal wear on a car of this age.
Rust & structure
The unibody has no separate frame, so structural corrosion is a repair bill rather than a cosmetic one. Work down this list before you look at anything else.
Cowl / plenum (under the windscreen)Critical
The classic first-generation killer. The cowl vent drains block with leaves, water sits in the plenum, and it rots from the inside out — invisible from above. Run a hose into the cowl vents with the doors open and watch the footwells and the kick panels. Wet carpet after rain, or a heater that smells damp, is the tell.
Repairing a rotten cowl means removing the windscreen and cutting the top off the plenum. It is one of the most expensive rust jobs on the car and it is routinely hidden by a fresh carpet set.
Torque boxesCritical
Structural boxes tying the floor to the frame rails, behind the front wheels and ahead of the rear wheels. Convertibles have extra ones and rely on them completely. Get underneath and prod them. Doors that drop, or that need lifting to latch, point straight here.
Convertibles have no roof structure, so rotten torque boxes let the whole shell flex. Treat this as structural on any open car.
Front shock towersCritical
Check around the upper shock mount and where the tower meets the inner apron, on both sides. Cracks and rust here change the front suspension geometry and are a safety issue, not a cosmetic one.
Rear frame rails and spring perchesCritical
Follow the rails from the torque boxes back over the axle. Rot at the leaf-spring front hangers is both common and structural.
Floor pans and toe boardsMajor
Lift the carpet — all of it, both sides, front and rear — and look from underneath as well. Patches welded over patches are common. Fresh underseal on an older car is often there to hide something.
Rear quarter panels and wheel archesMajor
The most visible rust and the most frequently bodged. Check inside the boot, the drop-offs either side of the boot floor, and behind the rear wheels. A magnet finds filler; a torch inside the boot finds daylight.
Boot (trunk) floor and drop-offsMajor
Lift the mat and the spare. Water enters past perished rear window and boot seals and collects here. The drop-off panels either side are a known rot point and are structural on convertibles.
Lower doors, front fender bottoms and rear valanceModerate
Drain holes clog and the panels rot from inside. These are bolt-on or readily available panels, so they are the least alarming rust on the list — but they signal how the car has been stored.
Mechanical, electrical & paperwork
Everything a running, driving car should be checked for — and the identity checks that decide what the car is actually worth.
Panel gaps and door fitCritical
Stand back and look down each side. Uneven gaps, a door that drops on opening, or a bonnet that sits proud usually mean structural rust or an old accident — not a bad panel fit from the factory.
VIN, door data plate and paperwork agreementCritical
Check that the VIN, the door data plate and the title agree with each other and with what the car actually is. A car sold as a GT, a K-code or a Pony-interior car should be verifiable from its codes — and codes can be, and are, faked.
Codes record what Ford built, not what is in front of you now. For a car with a significant price premium riding on its identity, get a marque registry or a specialist to look before you pay for the badge.
BrakesMajor
Four-wheel drums were standard; front discs were optional on V8 cars. Establish which the car actually has before buying parts — and expect drum-braked stopping distances if it has drums.
Charging and wiringMajor
Original harnesses are sixty years old. Look for added inline fuses, spliced repairs and aftermarket accessories wired straight to the battery — a genuine fire risk on a car with fabric-loom wiring.
Fuel system after long storageMajor
Tanks rust internally and modern ethanol-blended fuel attacks period rubber. A car that has stood for years usually needs the tank, lines and flexible hoses done before it is safe to drive far.
Convertible top, frame and sealsMajor
On an open car, check the frame for rust and the mechanism for operation under its own power, plus the rear window and the seals. Also confirm the extra convertible bracing underneath is present and sound.
Evidence over descriptionMajor
Ask for receipts, photographs of the car mid-restoration, and a look at it on a lift. A seller who can show the bodywork before the paint went on is telling you more than any description.
Engine — 200 six / 289 V8Moderate
Both are tough, simple and superbly supported by the parts industry. Look for oil pressure once warm, smoke on the overrun (valve seals) or under load (rings), and coolant in the oil. A tired one is a known-cost rebuild rather than a deal-breaker.
Front suspension and steeringModerate
Upper and lower ball joints, idler arm and the steering box all wear. Excessive play at the wheel and a wandering front end are normal for a neglected car and are a well-trodden, affordable rebuild.
Cooling systemModerate
These engines are not prone to overheating when healthy. A car that runs hot in traffic normally has a silted radiator, a tired water pump or a missing fan shroud — check the shroud is actually there.
Interior trim and glassModerate
Reproduction upholstery, carpet and weatherstrip are cheap and excellent. Correct original trim, date-coded glass and undamaged dash pads are not — and they are what separates a good car from an average one.
Non-original drivetrainModerate
Engine swaps, later five-speeds and disc-brake conversions are extremely common. None is a fault — a modified car can be the better driver — but it materially changes value, so establish what is actually fitted rather than what the advert says.
A where-to-look guide, not a repair estimate. A where-to-look guide for the 1964½–1973 unibody shell, worst-first. Deliberately carries no repair prices: costs vary far too much by region, shop and severity for a figure here to be honest. Rust is the deciding factor on these cars — mechanical parts are cheap and available, structural steel and the labour to fit it are not. Have any car you are serious about inspected on a lift. Nothing here replaces putting the car on a lift with someone who knows the model.
Sources: Hagerty Media — 1965–66 Ford Mustang buyer's guideWikipedia — "Ford Mustang (first generation)"
What it costs now
Price today
Original MSRP$2,416 (base hardtop)1966
Inflation-adjusted≈$23,400what that MSRP is worth in today's dollars
Current market value
- Project$8,000–$18,000
- Good (driver)$18,000–$35,000
- Excellent$35,000–$60,000
- Concours$55,000–$100,000
Deliberately broad ranges for a six-cylinder or 289 2-bbl hardtop — the single largest price variable on a 1966 Mustang is body style and drivetrain, not condition alone. Convertibles and fastbacks trade well above hardtops, and a documented 289 “K-code” Hi-Po car commands a substantial premium over any of these bands. Check the live Hagerty valuation for your exact configuration before buying or selling.
Source: Hagerty Valuation Tools — 1966 Ford Mustang · as of . Figures are USD and are ranges, not appraisals.
Original MSRP adjusted for inflation (CPI, 2024); not the car's current market/collector value. Source: U.S. Bureau of Labor Statistics, CPI-U (U.S. city average, all items), annual average.
Maintenance & service parts
Keep your 1966 Mustang on the road
Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.
Service desk
What this car needs & when
Use this as a service-planning checklist for 1966 Ford Mustang. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.
- Service topics
- 13
- Factory intervals
- 7
- Fitment-scoped
- 8
- Exact references
- 1
Before orderingIdentify your engine, options and build date.Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.
Oil filter
Exact reference available
Ford FL-1A-type spin-on
Same filter commonly listed for both the 200 I6 and the 289 V8 — confirm against your engine and any aftermarket adapter before ordering.
200 cu in inline-six
Baldwin B2
Source: Baldwin Filters — Automotive Applications catalog (2017) · Pre-1980 Applications section — Ford 1966, Mustang 200 cu in inline-six row · checked
Verified ordering references
- Service replacementBaldwin B2
Qty. 1 · Engine oil filter · catalog-listed
Baldwin's manufacturer application table lists this filter for the stated model year and engine. Confirm the VIN and installed engine before ordering.
Catalog: Baldwin Filters — Automotive Applications catalog (2017) · Pre-1980 Applications section — Ford 1966, Mustang 200 cu in inline-six row · checked
Search this part on Amazon
Engine oil
Sourced interval available
289 V8: 4 qt, 5 qt with a filter change
Capacity confirmed for the 289; verify the 200 I6 against a 1966 Ford shop manual. Many owners of flat-tappet classic engines run a high-ZDDP classic-car oil — a viscosity/additive choice, not a factory specification.
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Air filter
Sourced interval available
Round dry element in the factory air cleaner. Element size differs between the 200 I6 and the 289 air cleaners — measure yours; no single part number covers the 1966 lineup.
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Plastic-type element
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Paper-type element replacement
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Spark plugs
Fitment must be confirmed
Gap 0.034 in
Factory heat ranges: 200 I6 — Autolite BF-82; 289 2-bbl — BF-42; 289 4-bbl and “K-code” Hi-Po — BF-32. Gap 0.034 in per the 1966 tune-up chart; some Hi-Po references quote a tighter 0.028–0.032 in, so follow your shop manual.
PCV valve
Sourced interval available
Positive crankcase ventilation was fitted across the 1966 lineup; the valve and grommet differ between the 200 I6 and 289 V8. No verified part number — match to your engine.
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Fuel filter
Fitment must be confirmed
1966 cars use a filter at the carburettor inlet; inline filters are a common later addition. Type varies with the carburettor fitted — verify before ordering.
Drive belts
Fitment must be confirmed
V-belts. Count and length depend on the engine and on options such as power steering, air conditioning and the alternator fitted — measure the belts on the car.
Coolant / antifreeze
Sourced interval available
Conventional green ethylene-glycol antifreeze at a 50/50 mix suits a period cast-iron engine. Cooling-system capacity differs between the 200 I6 and 289 V8 and is not published here — fill to the correct level rather than to a quoted quantity.
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Brake pads & shoes
Sourced interval available
Four-wheel drums were standard for 1966; front discs were an option on V8 cars. Order shoes or pads to match what is actually on the car, not to the model year.
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Wiper blades
Fitment must be confirmed
Blade length is not published here — measure the blades on the car. The factory arm uses a period bayonet-style fitting, so a modern hook-slot blade may need an adapter.
Battery
Fitment must be confirmed
Original equipment was a period 12-volt battery; BCI group 24/24F is the size most commonly fitted to these cars today. Check tray and cable clearance — this is a modern equivalence, not a factory specification.
Front wheel bearings — clean and repack
Sourced interval available
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Front suspension ball joints — lubricate
Sourced interval available
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Power-steering control-valve ball stud
Source: Ford — 1966 Mustang Quality Car Care schedule (owner-manual mirror) · Printed pages 52–66: 1966 Mustang Quality Car Care Schedule and 6,000- through 36,000-mile maintenance records · checked
Collect
Bring this model year home
Find a scale model using the exact year, make, and model—not a generic generation search.
Famous variants this year
Sources
- Wikipedia — "Ford Mustang (first generation)"
- Classic Industries
- MustangSpecs — per-year base MSRP
- CarGurus
- Hagerty Valuation Tools — 1966 Ford Mustang
- Maine Mustang — 1966 Mustang tune-up specifications
- MustangAttitude — 1966 production by body style
- MustangAttitude — 1966 Mustang paint colors
- Average Joe Restoration — 1966 Mustang VIN & data plate decoder sheet
- Classic Industries — 1966 Ford Mustang data plate decoder
- Over-Drive Magazine — 1966 Ford Mustang fact sheet
- Conceptcarz — 1966 Ford Mustang specifications
- MustangSpecs — 1966 Ford Mustang in-depth guide
- Hagerty Media — 1965–66 Ford Mustang buyer's guide
Other First generation years
Explore the Original / classic generation →All First generation · Original / classic years →
