Car Model History

Second generation · TJ · 1997–2006

1997Jeep Wrangler

Returned to the heritage round headlamps and, most significantly, swapped leaf springs for a coil-spring suspension that dramatically improved ride and articulation. Introduced the Rubicon trim for 2003.

Second generation · TJ

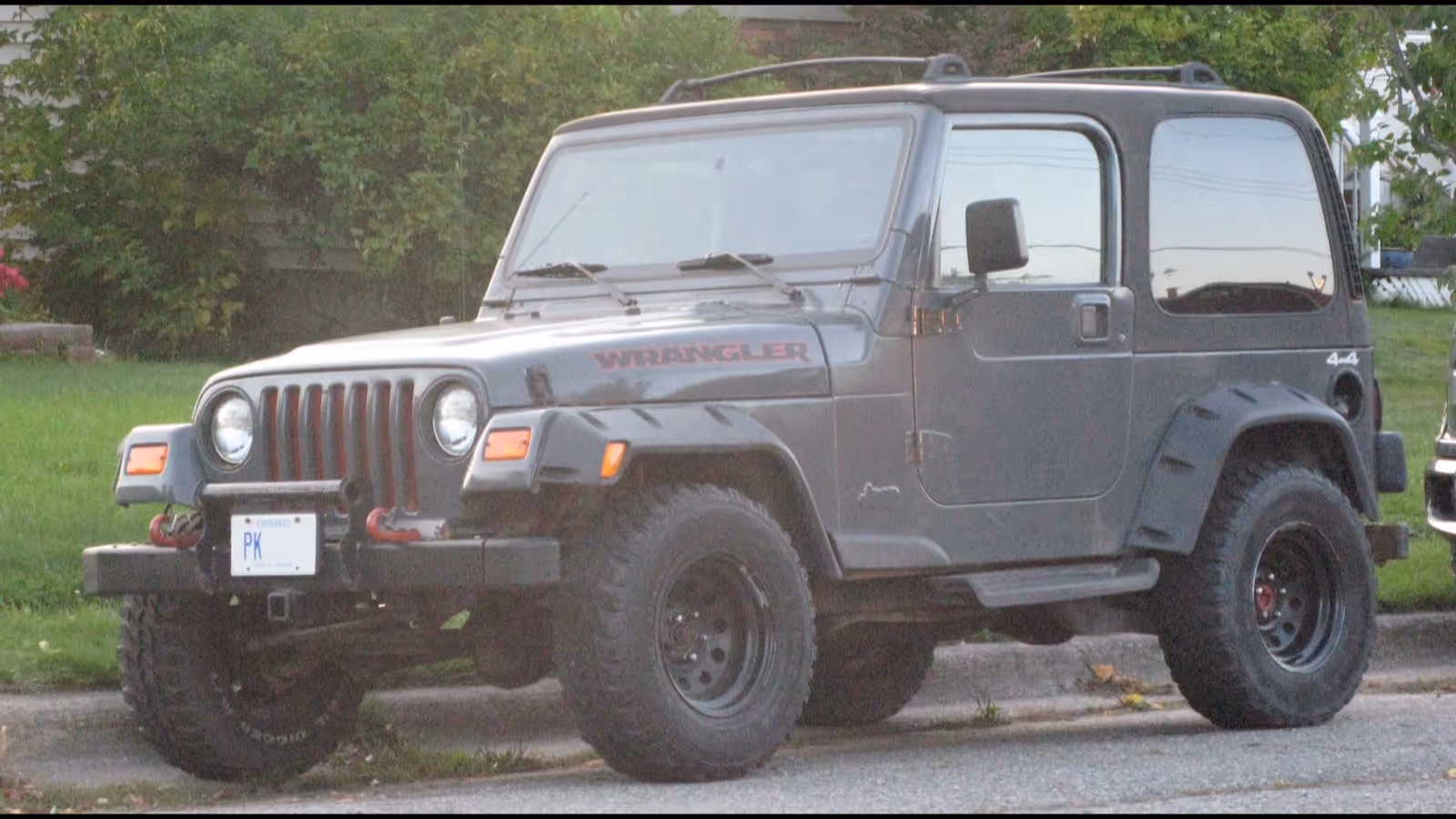

1997 Jeep Wrangler TJ SE, front three-quarter view (round headlamps)

Photo: “1997 Jeep Wrangler TJ SE, Front Left, 09-20-2020.jpg” by SsmIntrigue / Wikimedia Commons, licensed under CC BY-SA 4.0. Cropped to 16:9.

Start here

What do you need to know?

This page covers the whole 1997 Jeep Wrangler model year. Choose your task first; exact trims and engines are separated where the factory offered different versions.

Documented lineup

Find your exact 1997 Wrangler

Start with a family, body style, or engine. Every card opens the facts and maintenance information for that factory version.

4factory configurations
Exact factory pairings documentedHow this lineup was verified

These source-backed records identify published body, engine, and transmission combinations. Exact pairings do not by themselves assert that every factory option or special edition is represented.

4versions shown
Two-door removable-top 4x4 SUV

Wrangler — 2.5L AMC inline-four, AX-5 5-speed manual (2.5L)

Body
Two-door removable-top 4x4 SUV
Engine
2.5L AMC inline-four
Gearbox
AX-5 5-speed manual (2.5L)
Built
Regular production
Open exact version
Two-door removable-top 4x4 SUV

Wrangler — 2.5L AMC inline-four, 32RH 3-speed automatic

Body
Two-door removable-top 4x4 SUV
Engine
2.5L AMC inline-four
Gearbox
32RH 3-speed automatic
Built
Regular production
Open exact version
Two-door removable-top 4x4 SUV

Wrangler — 4.0L AMC inline-six, AX-15 5-speed manual (4.0L)

Body
Two-door removable-top 4x4 SUV
Engine
4.0L AMC inline-six
Gearbox
AX-15 5-speed manual (4.0L)
Built
Regular production
Open exact version
Two-door removable-top 4x4 SUV

Wrangler — 4.0L AMC inline-six, 32RH 3-speed automatic

Body
Two-door removable-top 4x4 SUV
Engine
4.0L AMC inline-six
Gearbox
32RH 3-speed automatic
Built
Regular production
Open exact version

The 1997 model year

Overview

Introduced in 1996 as a 1997 model, the second-generation Wrangler (TJ) reintroduced the heritage round headlamps and, most importantly, replaced the leaf-spring suspension with a coil-spring 'Quadra-Coil' setup that sharply improved ride quality and off-road wheel articulation. There was no 1996 US-market Wrangler.

Specifications

Engines
  • 2.5L AMC inline-four
  • 4.0L AMC inline-six
Transmissions
AX-5 5-speed manual (2.5L), AX-15 5-speed manual (4.0L), 32RH 3-speed automatic
Body styles
2-door SUV

Year over year

What changed

  • Returned to round headlamps after the YJ's square units.
  • Switched from leaf springs to coil-spring suspension, improving ride and articulation.

Worth knowing

Notable

  • The coil-spring change is the headline TJ upgrade.
  • The Rubicon trim arrived later in the TJ run, for 2003.

Living with it

Reliability & ownership notes

  • The 4.0-liter inline-six TJs are valued for durability; check frame rust and rear-spring/control-arm condition.

Maintenance & service parts

Keep your 1997 Wrangler on the road

Start with the service interval, then match the engine or exact version you own. Order links appear only when a catalog-backed part number is available, and every listing still needs a fitment check.

Service desk

What this car needs & when

Use this as a service-planning checklist for 1997 Jeep Wrangler. Start with the interval, confirm which engine or configuration you have, then use an exact ordering reference when one is verified.

Service topics
3
Factory intervals
3
Fitment-scoped
3
Exact references
2

Before orderingIdentify your engine, options and build date.Part numbers and sizes can change within one model year. Shopping links appear only for catalog-backed references; still verify the listing against your vehicle before ordering.

  • Engine oil and filter

    Exact reference available

    Published service schedule

    Applies to: 1997 · 2.5L AMC inline-four · United States · This recovered schedule is intentionally scoped to the cited four-cylinder record; six-cylinder and California-specific requirements are not claimed.

    Published interval: 7,500 mi · Normal-service mileage interval; the archive instructs annual oil-filter replacement at each oil change when yearly mileage is below the stated interval.

    Source: Operation CHARM — 1997 Jeep Wrangler L4-150 2.5L VIN P MFI normal-service schedule · 7,500-mile normal-service row and its repeating mileage rows · checked

    Cataloged oil-filter fitment

    Baldwin lists B34 for both cataloged Wrangler engines; this establishes fitment only, not a service interval.

    Applies to: 1997 · 2.5L AMC inline-four, 4.0L AMC inline-six · United States · Cataloged four- and six-cylinder Wrangler applications.

    Source: Baldwin Filters — 2017 Automotive Applications catalog · Printed catalog page 346, Jeep 1997 Wrangler 2.5L AMC inline-four / 4.0L AMC inline-six row — Lube — B34 · checked

    Verified ordering references

    • Validated equivalentBaldwin B34

      Qty. 1 · Spin-on engine lubricating-oil filter · catalog-listed

      Cataloged for the 1997 Wrangler 2.5L AMC inline-four / 4.0L AMC inline-six; confirm VIN and installed engine before ordering.

      Catalog: Baldwin Filters — 2017 Automotive Applications catalog · Printed catalog page 346, Jeep 1997 Wrangler 2.5L AMC inline-four / 4.0L AMC inline-six row — Lube — B34 · checked

      Search this part on Amazon

  • Spark plugs

    Sourced interval available

    Applies to: 1997 · 2.5L AMC inline-four · United States · This recovered schedule is intentionally scoped to the cited four-cylinder record; six-cylinder and California-specific requirements are not claimed.

    Published interval: 30,000 mi · Normal-service replacement interval in the cited engine schedule.

    Source: Operation CHARM — 1997 Jeep Wrangler L4-150 2.5L VIN P MFI normal-service schedule · 30,000-mile normal-service row and repeating replacement rows · checked

  • Engine air filter

    Exact reference available

    Published service schedule

    Applies to: 1997 · 2.5L AMC inline-four · United States · This recovered schedule is intentionally scoped to the cited four-cylinder record; six-cylinder and California-specific requirements are not claimed.

    Published interval: 30,000 mi · Normal-service replacement interval in the cited engine schedule.

    Source: Operation CHARM — 1997 Jeep Wrangler L4-150 2.5L VIN P MFI normal-service schedule · 30,000-mile normal-service row and repeating replacement rows · checked

    Cataloged engine-air-filter fitment

    Baldwin lists PA4092 for both cataloged Wrangler engines; this establishes fitment only, not a service interval.

    Applies to: 1997 · 2.5L AMC inline-four, 4.0L AMC inline-six · United States · Cataloged four- and six-cylinder Wrangler applications.

    Source: Baldwin Filters — 2017 Automotive Applications catalog · Printed catalog page 346, Jeep 1997 Wrangler 2.5L AMC inline-four / 4.0L AMC inline-six row — Air — PA4092 · checked

    Verified ordering references

    • Validated equivalentBaldwin PA4092

      Qty. 1 · Engine air-filter element · catalog-listed

      Cataloged for the 1997 Wrangler 2.5L AMC inline-four / 4.0L AMC inline-six; confirm VIN and installed engine before ordering.

      Catalog: Baldwin Filters — 2017 Automotive Applications catalog · Printed catalog page 346, Jeep 1997 Wrangler 2.5L AMC inline-four / 4.0L AMC inline-six row — Air — PA4092 · checked

      Search this part on Amazon

Accessories matched to this model year

Shop accessories for your 1997 Jeep Wrangler

Review the fitment details before ordering.

5 accessory matches

  • Rear bumper for Jeep Wrangler

    Bumpers & armor

    Rear bumper

    Fits 1987–2006 Jeep Wrangler

    Fitment details

    Fits 1987–2006 Jeep Wrangler. Confirm body style, doors, drivetrain, dimensions, and exclusions on the merchant listing before ordering.

    View at OEDRO
  • Front bumper for Jeep Wrangler

    Bumpers & armor

    Front bumper

    Fits 1987–2006 Jeep Wrangler

    Fitment details

    Fits 1987–2006 Jeep Wrangler. Confirm body style, doors, drivetrain, dimensions, and exclusions on the merchant listing before ordering.

    View at OEDRO
  • Rear bumper for Jeep Wrangler

    Bumpers & armor

    Rear bumper

    Fits 1987–2006 Jeep Wrangler

    Fitment details

    Fits 1987–2006 Jeep Wrangler. Confirm body style, doors, drivetrain, dimensions, and exclusions on the merchant listing before ordering.

    View at OEDRO
  • Rear bumper for Jeep Wrangler

    Bumpers & armor

    Rear bumper

    Fits 1987–2006 Jeep Wrangler

    Fitment details

    Fits 1987–2006 Jeep Wrangler. Confirm body style, doors, drivetrain, dimensions, and exclusions on the merchant listing before ordering.

    View at OEDRO
  • Flat Fender Flares for Jeep Wrangler

    Bumpers & armor

    Flat Fender Flares

    Fits 1997–2006 Jeep Wrangler

    Fitment details

    Fits 1997–2006 Jeep Wrangler. Confirm body style, doors, drivetrain, dimensions, and exclusions on the merchant listing before ordering.

    View at OEDRO

Collect

Bring this model year home

Find a scale model using the exact year, make, and model—not a generic generation search.

Famous variants this year

Sources

  1. Mopar Owner's Information — select 1997 Jeep Wrangler
  2. Wikipedia — "Jeep Wrangler"
